Symbol
PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for MBED-LPC1768
- Part Number MBED-LPC1768
- Manufacturer mbed
- Pin Count 40
- Part Category Integrated Circuit
- Package Category Dual-In-Line Sockets
- Footprint Name Dual-In-Line Sockets - LPC1768 Module
- Released Date May 17, 2018
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
MBED-LPC1768 Details
-
Manufacturer Part Number:
MBED-LPC1768
-
Manufacturer:
ARM Ltd
Trust Checks
Expert Contribution
System Verified
Community Approved
MBED-LPC1768 Overview

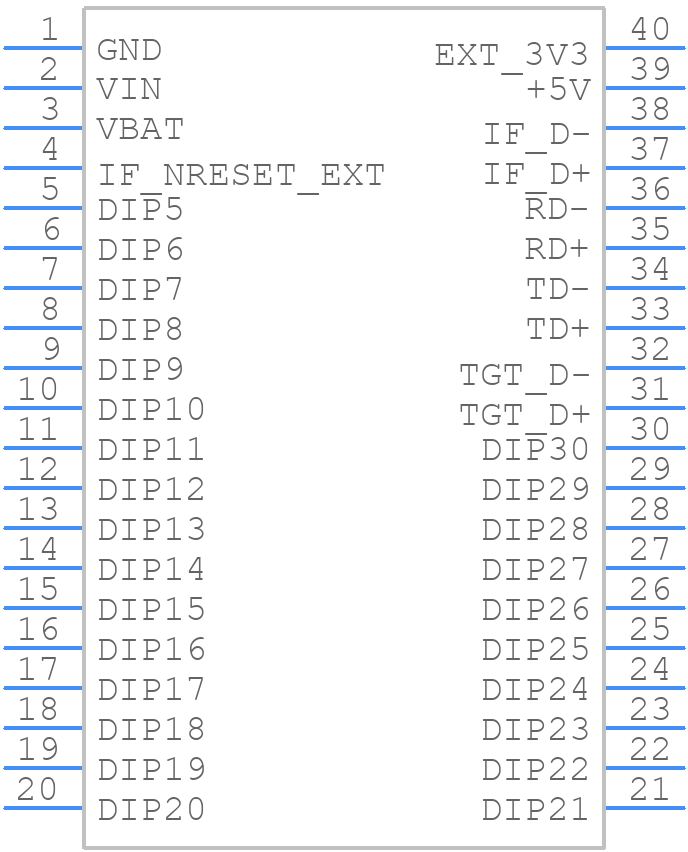

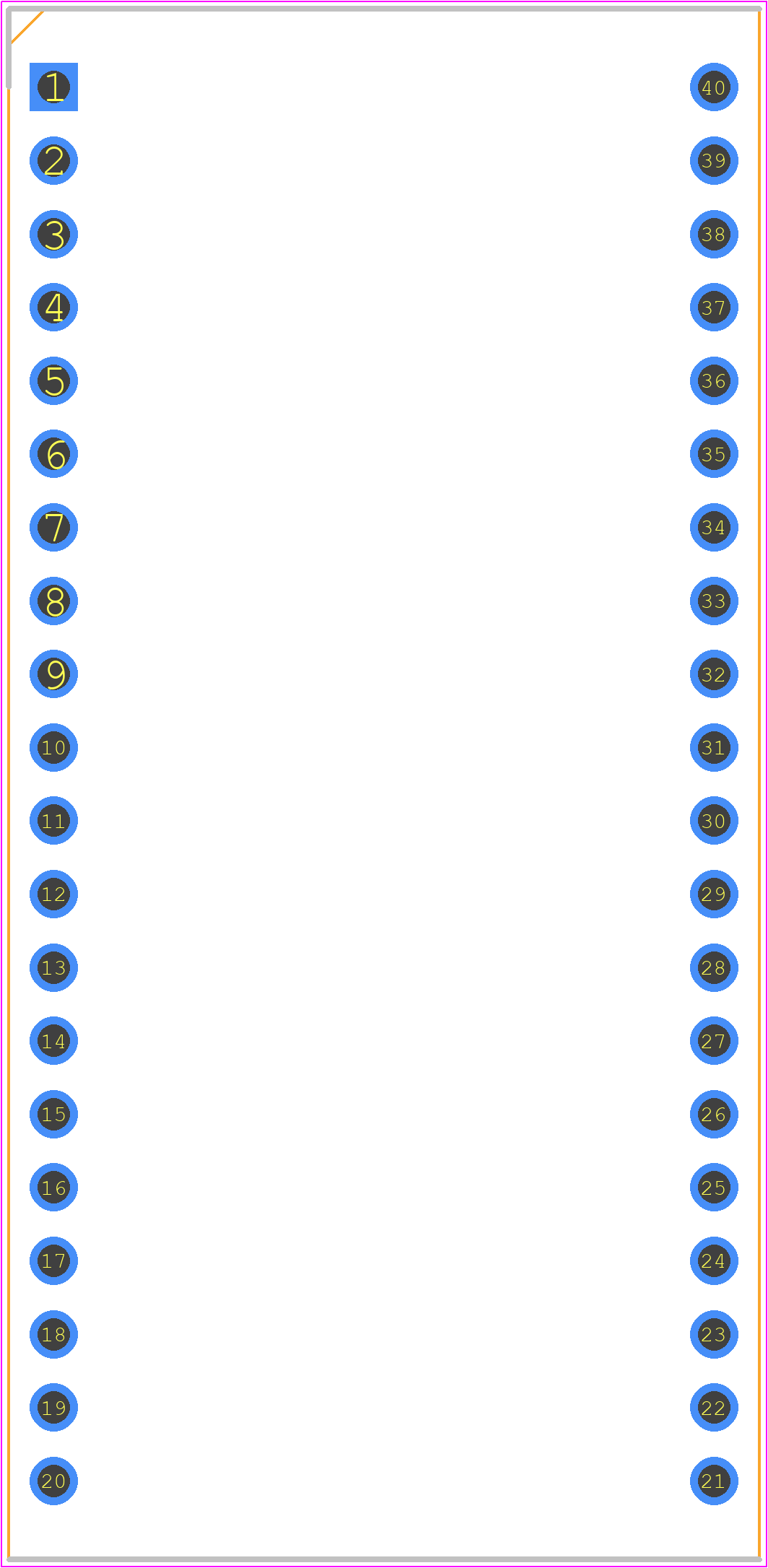

Use the download button to access the MBED-LPC1768 schematic symbol and PCB footprint.
