MBI5026GF - MBI

Description: 16-bit Constant Current LED Sink Driver 5V supply voltage Excellent output current accuracy: between channels: <+/-3% (max.) between ICs: <+/-6% (max.) Small Outline Package GF: SOP24-300-1.00

Download MBI5026GF Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this MBI5026GF model

Email notifications will be applied after download.

Send part feedback

Symbol

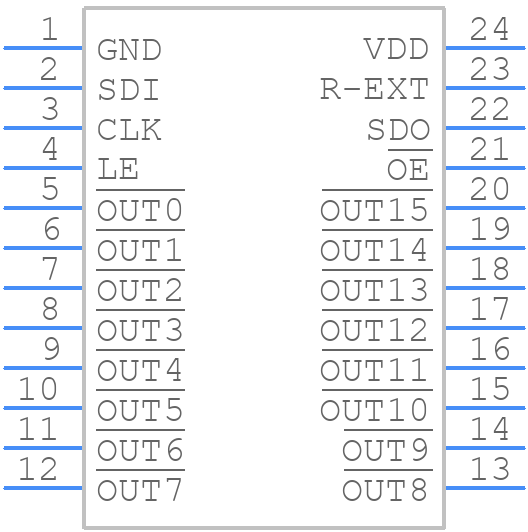

MBI5026GF - MBI - PCB symbol

PCB Footprints

MBI5026GF - MBI PCB footprint - Small Outline Packages - Small Outline Packages - MBI5026GF

Datasheet Download Datasheet
Stock & Prices Price & Stock for MBI5026GF
Part Number MBI5026GF
Manufacturer MBI
Pin Count 24
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - MBI5026GF
Released Date Jan 25, 2022
Pinout / Pin List Click Here (Member Only)

Trust Checks

Community Provided

System Verified

Community Approved

MBI5026GF Overview

Use the download button to access the MBI5026GF schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like MBI50, or try a keyword search, such as Display Drivers
