MBI5026GF - Macroblock

Description: Constant LED Sink Driver, SOP-24

Download MBI5026GF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

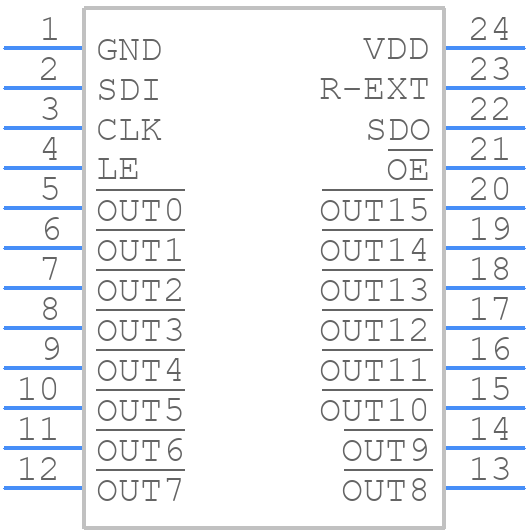

MBI5026GF - Macroblock - PCB symbol
click to zoom
PCB Footprints
MBI5026GF - Macroblock PCB footprint - Small Outline Packages - Small Outline Packages - MBI5026GF
click to zoom

MBI5026GF Details

  • Manufacturer Part Number:

    MBI5026GF

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • Package Description:

    0.300 INCH, 1 MM PITCH, GREEN, SOP-24

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Macroblock Inc

  • Data Input Mode:

    SERIAL

  • Display Mode:

    SEGMENT

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    R-PDSO-G24

  • Length:

    13 mm

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    16

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SOP24,.3,40

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.9 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    DUAL

  • Width:

    6 mm

  • fmax-Min:

    25 MHz

MBI5026GF Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a dedicated thermal plane and vias under the IC is recommended. Ensure a minimum of 2 oz copper thickness and a thermal relief pattern under the IC.
  • Use the recommended current setting in the datasheet as a starting point. Then, adjust the current based on the specific LED characteristics, ambient temperature, and desired brightness. Monitor the LED voltage and current to avoid overheating.
  • The maximum allowable voltage drop is 0.5V. Exceeding this may lead to reduced efficiency and increased heat generation. Ensure proper PCB design and component selection to minimize voltage drops.
  • Follow the recommended PCB layout and component placement guidelines. Use a shielded enclosure, and ensure proper grounding and decoupling. Implement EMI filtering and shielding as necessary.
  • The recommended operating frequency range is 100 kHz to 1 MHz. Operating outside this range may affect efficiency and stability.
