mbi5026gn - Macroblock

Description: 16 BIT CONSTANT CURRENT LED SINK DRIVER

Download mbi5026gn Model

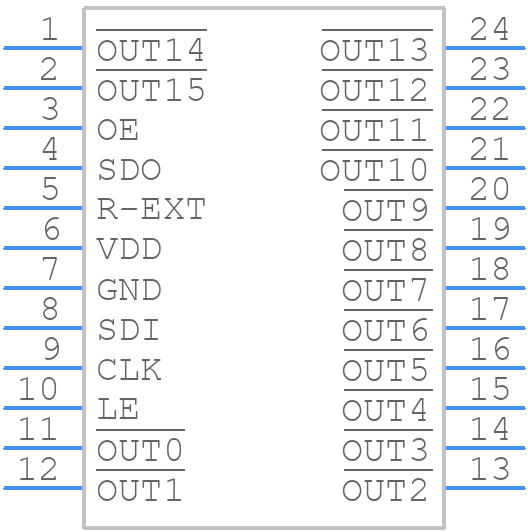

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

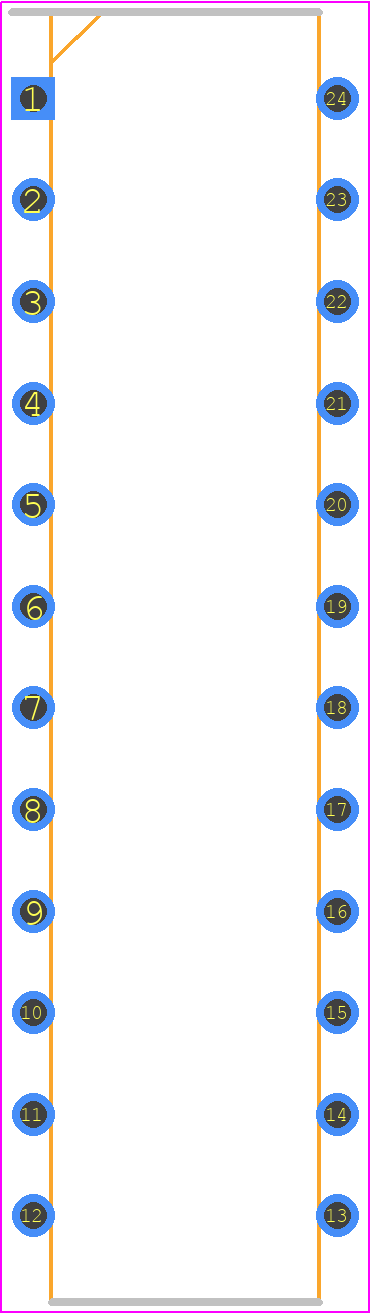

PCB Footprints
mbi5026gn - Macroblock PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - mbi5026gn
click to zoom
3D Models
mbi5026gn - Macroblock  - 3D model - Dual-In-Line Packages - mbi5026gn
click to zoom

mbi5026gn Details

  • Manufacturer Part Number:

    MBI5026GN

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • Package Description:

    0.300 INCH, 2.54 MM PITCH, GREEN, PLASTIC, DIP-24

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Macroblock Inc

  • Data Input Mode:

    SERIAL

  • Display Mode:

    SEGMENT

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    R-PDIP-T24

  • Length:

    31.75 mm

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    16

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP24,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.334 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

  • fmax-Min:

    25 MHz

mbi5026gn Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a thermal pad connected to a heat sink is recommended. Ensure a minimum of 1mm clearance around the package for heat dissipation.
  • Use the ILED_SEL pins to set the LED current. For example, for a typical display application, set ILED_SEL to 011 for 20mA, 100 for 30mA, and 111 for 40mA. Adjust according to your display's requirements.
  • The recommended clock frequency is 24MHz, and the data transfer rate is up to 24Mbps. Ensure the clock frequency and data transfer rate are within the recommended specifications to avoid data corruption.
  • Use the GAMMA_SEL pins to select one of the four gamma correction curves. You can also use the internal gamma correction table or provide an external gamma correction table through the I2C interface.
  • Power up the device in the following sequence: VDD, VCC, and finally, the clock signal. Ensure a stable power supply by using a low-dropout regulator (LDO) and decoupling capacitors close to the device.
