MBI5026GP - Macroblock

Description: LED Display Driver 16 channels, Iout 5÷90mA @ 5V, Vds 17V max, fCLK 25MHz, Vdd 3.0÷5.5V, -40÷85°C

Download MBI5026GP Model

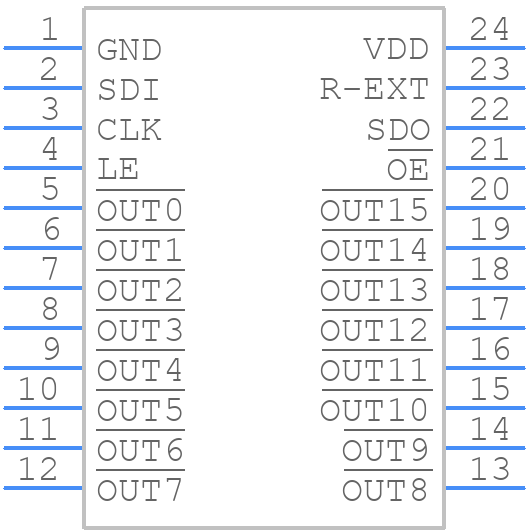

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MBI5026GP - Macroblock PCB footprint - Small Outline Packages - Small Outline Packages - SSOP24-150-064
click to zoom
3D Models
MBI5026GP - Macroblock  - 3D model - Small Outline Packages - SSOP24-150-064
click to zoom

MBI5026GP Details

  • Manufacturer Part Number:

    MBI5026GP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • Package Description:

    0.150 INCH, 0.64 MM PITCH, GREEN, SSOP-24

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Macroblock Inc

  • Data Input Mode:

    SERIAL

  • Display Mode:

    SEGMENT

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    R-PDSO-G24

  • Length:

    8.65 mm

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    16

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP24,.24

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

  • fmax-Min:

    25 MHz

MBI5026GP Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a thermal pad connected to a heat sink is recommended. Ensure a minimum of 1mm clearance around the package for heat dissipation.
  • Use the ILED_SEL pins to set the LED current. For example, for a typical display application, set ILED_SEL[1:0] to '10' for 20mA, '01' for 10mA, or '00' for 5mA. Adjust the current based on the display's requirements.
  • The recommended clock frequency is 24MHz, and the data transfer rate is up to 24Mbps. Ensure the clock frequency and data transfer rate are within the recommended specifications to avoid data corruption or loss.
  • Use the GAMMA_SEL pins to select one of the four gamma correction curves. The gamma correction data is stored in the internal OTP memory. Consult the datasheet for the gamma correction curve selection table.
  • The OTP memory stores the gamma correction data, device identification, and other calibration data. It is programmed during the manufacturing process and cannot be rewritten.
