MBR1545CT - onsemi

MBR1545CT Details

• Manufacturer Part Number:

  MBR1545CT

• Brand Name:

  ON Semiconductor

• Pbfree Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  TO-220AB

• Package Description:

  PLASTIC, CASE 221A-09, 3 PIN

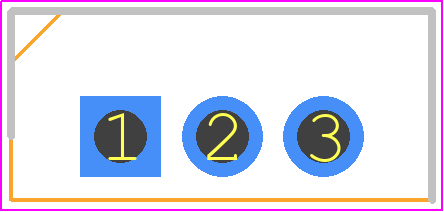

• Pin Count:

  3

• Manufacturer Package Code:

  340AT

• Country Of Origin:

  Mainland China

• ECCN Code:

  EAR99

• HTS Code:

  8541.10.00.80

• Factory Lead Time:

  4 Weeks

• Manufacturer:

  onsemi

• YTEOL:

  0

• Additional Feature:

  FREE WHEELING DIODE, LOW POWER LOSS

• Application:

  EFFICIENCY

• Case Connection:

  CATHODE

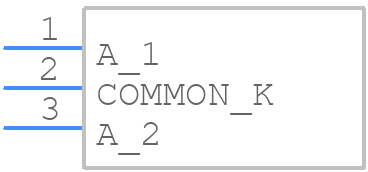

• Configuration:

  COMMON CATHODE, 2 ELEMENTS

• Diode Element Material:

  SILICON

• Diode Type:

  RECTIFIER DIODE

• Forward Voltage-Max (VF):

  0.84 V

• JEDEC-95 Code:

  TO-220AB

• JESD-30 Code:

  R-PSFM-T3

• JESD-609 Code:

  e0

• Non-rep Pk Forward Current-Max:

  150 A

• Number of Elements:

  2

• Number of Phases:

  1

• Number of Terminals:

  3

• Operating Temperature-Max:

  150 °C

• Operating Temperature-Min:

  -65 °C

• Output Current-Max:

  7.5 A

• Package Body Material:

  PLASTIC/EPOXY

• Package Shape:

  RECTANGULAR

• Package Style:

  FLANGE MOUNT

• Power Dissipation-Max:

  41.7 W

• Qualification Status:

  Not Qualified

• Rep Pk Reverse Voltage-Max:

  45 V

• Reverse Current-Max:

  1000 µA

• Reverse Test Voltage:

  45 V

• Surface Mount:

  NO

• Technology:

  SCHOTTKY

• Terminal Finish:

  TIN LEAD

• Terminal Form:

  THROUGH-HOLE

• Terminal Position:

  SINGLE
