MBR540MFST3G - onsemi

Description: Obsolete - 5A 60V Schottky Rectifier in SO-8FL

Download MBR540MFST3G Model

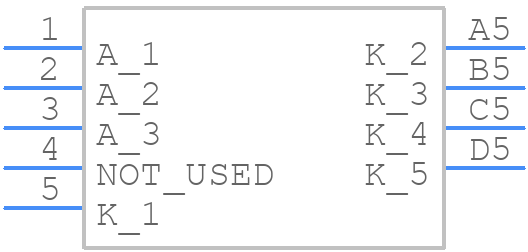

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MBR540MFST3G - onsemi PCB footprint - Other - Other - MBR540MFST3G-8
click to zoom
3D Models
MBR540MFST3G - onsemi  - 3D model - Other - MBR540MFST3G-8
click to zoom

MBR540MFST3G Details

  • Manufacturer Part Number:

    MBR540MFST3G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DFN5 5X6, 1.27P (SO 8FL)

  • Pin Count:

    5

  • Manufacturer Package Code:

    488AA

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.80

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Additional Feature:

    LOW POWER LOSS

  • Application:

    EFFICIENCY

  • Case Connection:

    CATHODE

  • Configuration:

    SINGLE

  • Diode Element Material:

    SILICON

  • Diode Type:

    RECTIFIER DIODE

  • Forward Voltage-Max (VF):

    0.58 V

  • JESD-30 Code:

    R-PDSO-F5

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Non-rep Pk Forward Current-Max:

    150 A

  • Number of Elements:

    1

  • Number of Phases:

    1

  • Number of Terminals:

    5

  • Operating Temperature-Max:

    175 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    5 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Rep Pk Reverse Voltage-Max:

    40 V

  • Reverse Current-Max:

    2000 µA

  • Surface Mount:

    YES

  • Technology:

    SCHOTTKY

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    FLAT

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

MBR540MFST3G Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the MBR540MFST3G is -55°C to 150°C, as specified in the datasheet. However, it's recommended to operate within the -40°C to 125°C range for optimal performance and reliability.
  • To ensure proper biasing, follow the recommended operating conditions in the datasheet. Typically, this includes connecting the anode to a positive voltage source (e.g., VCC) and the cathode to a negative voltage source (e.g., GND) or a voltage divider. Consult the datasheet for specific biasing requirements.
  • Store the MBR540MFST3G in a dry, cool place, away from direct sunlight and moisture. The recommended storage temperature range is -40°C to 30°C, with a relative humidity of 60% or less. Avoid exposing the device to extreme temperatures, humidity, or physical stress.
  • Yes, the MBR540MFST3G is suitable for high-frequency switching applications due to its fast switching times (trr < 50 ns) and low capacitance (Cj < 15 pF). However, ensure that the device is properly biased and the circuit is designed to minimize ringing and oscillations.
  • To prevent electrostatic discharge (ESD) damage, handle the MBR540MFST3G with ESD-protective equipment, such as wrist straps, mats, or bags. Avoid touching the device's pins or leads, and ensure that the workspace is ESD-safe.
