MBRD10100CT-13 footprint, schematic symbol and 3D model by Diodes Incorporated

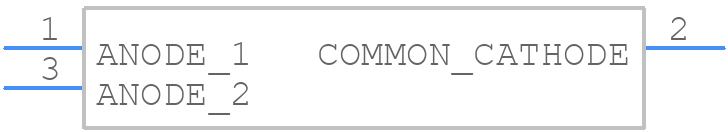

Symbol

click to zoom

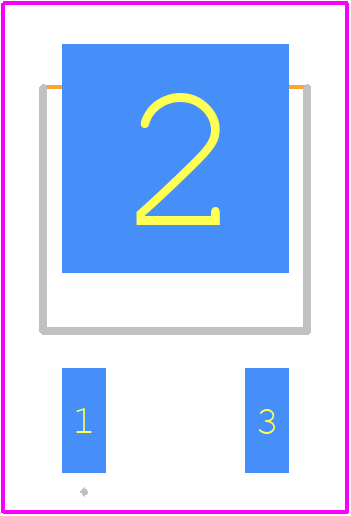

PCB Footprints

MBRD10100CT-13 - Diodes Incorporated PCB footprint - Other - Other - MBRD10100CT-13-5

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for MBRD10100CT-13
Part Number MBRD10100CT-13
Manufacturer Diodes Incorporated
Pin Count 3
Part Category Schottky Diode
Package Category Other
Footprint Name Other - MBRD10100CT-13-5
Released Date Nov 1, 2021
Last Modified Date Jun 25, 2024 8:06 AM UTC
Pinout / Pin List Click Here (Member Only)

MBRD10100CT-13 Details

Manufacturer Part Number:
MBRD10100CT-13
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
DPAK-3/2
Country Of Origin:
Mainland China
ECCN Code:
EAR99
HTS Code:
8541.10.00.80
Factory Lead Time:
12 Weeks
Manufacturer:
Diodes Incorporated
YTEOL:
6
Application:
GENERAL PURPOSE
Configuration:
COMMON CATHODE, 2 ELEMENTS
Diode Element Material:
SILICON
Diode Type:
RECTIFIER DIODE
Forward Voltage-Max (VF):
0.84 V
JEDEC-95 Code:
TO-252
JESD-30 Code:
R-PSSO-G2
JESD-609 Code:
e3
Moisture Sensitivity Level:
1
Non-rep Pk Forward Current-Max:
110 A
Number of Elements:
2
Number of Phases:
1
Number of Terminals:
2
Operating Temperature-Max:
175 °C
Operating Temperature-Min:
-55 °C
Output Current-Max:
5 A
Package Body Material:
PLASTIC/EPOXY
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Peak Reflow Temperature (Cel):
260
Rep Pk Reverse Voltage-Max:
100 V
Reverse Current-Max:
100 µA
Surface Mount:
YES
Technology:
SCHOTTKY
Terminal Finish:
Matte Tin (Sn)
Terminal Form:
GULL WING
Terminal Position:
SINGLE
Time@Peak Reflow Temperature-Max (s):
30

MBRD10100CT-13 Frequently Asked Questions (FAQs)

The recommended PCB footprint for the MBRD10100CT-13 is a standard SOD-123 package with a 1.7mm x 1.3mm body size. A minimum pad size of 0.8mm x 0.8mm is recommended for reliable soldering.
To ensure reliable operation in high-temperature environments, ensure that the device is operated within its specified temperature range (-55°C to 150°C). Also, consider using a heat sink or thermal pad to dissipate heat, and ensure good airflow around the device.
The maximum allowable voltage for the MBRD10100CT-13 is 100V. Exceeding this voltage may cause permanent damage to the device.
Yes, the MBRD10100CT-13 can be used in switching regulator applications. However, ensure that the device is operated within its specified frequency range (up to 100kHz) and that the voltage and current ratings are not exceeded.
To prevent ESD damage, handle the MBRD10100CT-13 with an anti-static wrist strap or mat, and ensure that the device is stored in an anti-static bag or tube when not in use.
