MBRD10150CT-13 - Diodes Incorporated

MBRD10150CT-13 Details

• Manufacturer Part Number:

  MBRD10150CT-13

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

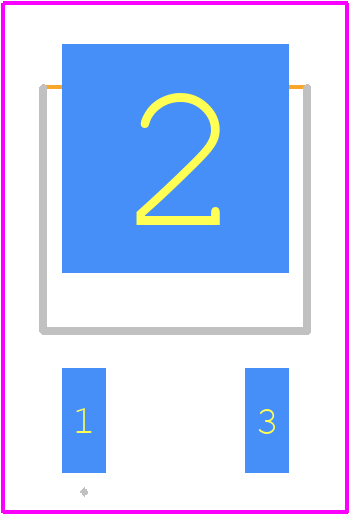

• Package Description:

  DPAK, 3/2 PIN

• Country Of Origin:

  Mainland China

• ECCN Code:

  EAR99

• HTS Code:

  8541.10.00.80

• Factory Lead Time:

  12 Weeks

• Manufacturer:

  Diodes Incorporated

• YTEOL:

  6

• Application:

  GENERAL PURPOSE

• Case Connection:

  CATHODE

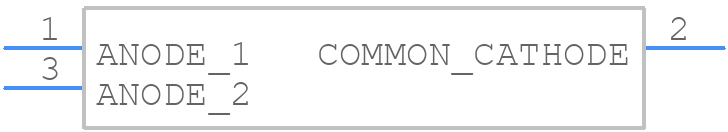

• Configuration:

  COMMON CATHODE, 2 ELEMENTS

• Diode Element Material:

  SILICON

• Diode Type:

  RECTIFIER DIODE

• Forward Voltage-Max (VF):

  0.89 V

• JEDEC-95 Code:

  TO-252

• JESD-30 Code:

  R-PSSO-G2

• JESD-609 Code:

  e3

• Moisture Sensitivity Level:

  1

• Non-rep Pk Forward Current-Max:

  100 A

• Number of Elements:

  2

• Number of Phases:

  1

• Number of Terminals:

  2

• Operating Temperature-Max:

  175 °C

• Operating Temperature-Min:

  -55 °C

• Output Current-Max:

  5 A

• Package Body Material:

  PLASTIC/EPOXY

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Peak Reflow Temperature (Cel):

  260

• Rep Pk Reverse Voltage-Max:

  150 V

• Reverse Current-Max:

  50 µA

• Surface Mount:

  YES

• Technology:

  SCHOTTKY

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  GULL WING

• Terminal Position:

  SINGLE

• Time@Peak Reflow Temperature-Max (s):

  30
