MBT-283+ - Mini-Circuits

Description: 50Ω Wideband, 1.5 to 28 GHz

Download MBT-283+ Model

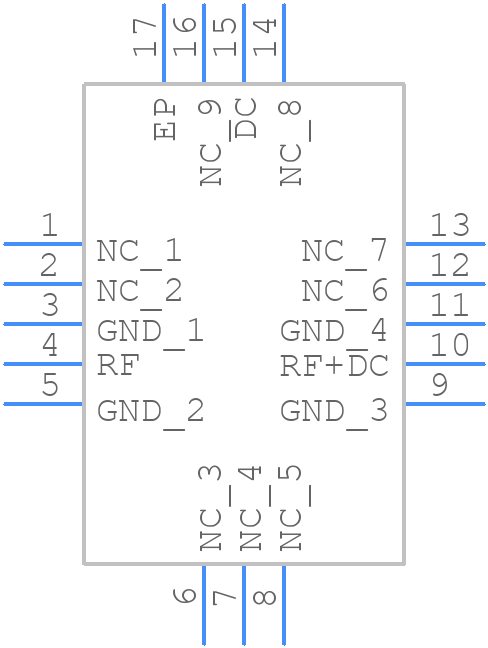

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MBT-283+ - Mini-Circuits PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - JV2579-DFN=16
click to zoom
3D Models
MBT-283+ - Mini-Circuits  - 3D model - Quad Flat No-Lead - JV2579-DFN=16
click to zoom

MBT-283+ Details

  • Manufacturer Part Number:

    MBT-283+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Date Of Intro:

    2020-09-21

  • Manufacturer:

    Mini-Circuits

  • Additional Feature:

    TR, 7 INCH: 1000

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • DC Voltage-Max:

    35 V

  • Insertion Loss-Max:

    2.1 dB

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    16

  • Operating Frequency-Max:

    28000 MHz

  • Operating Frequency-Min:

    1500 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC16,.1X.14,20

  • RF/Microwave Device Type:

    MONITOR TEE DC BLOCK

  • Screening Level:

    MIL-STD-202; MIL-STD-883

  • Surface Mount:

    YES

  • VSWR-Max:

    1.86
