MC-28PLCC-SMT - Multicomp Pro

Description: MULTICOMP - MC-28PLCC-SMT - SOCKET, PLCC, 28 PIN, SMD

Download MC-28PLCC-SMT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

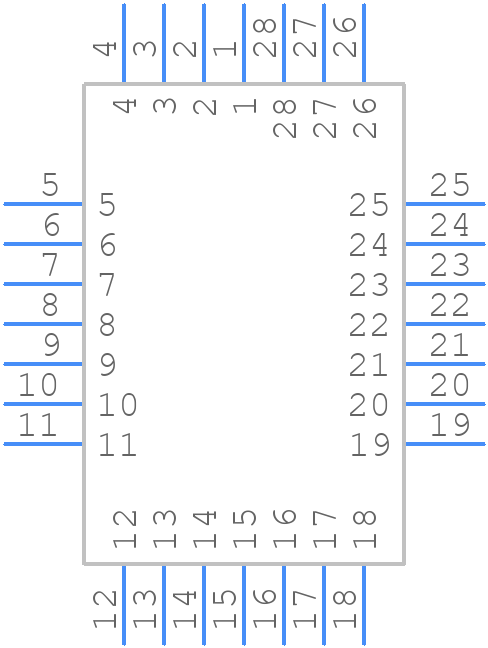

MC-28PLCC-SMT - Multicomp Pro - PCB symbol
click to zoom
PCB Footprints

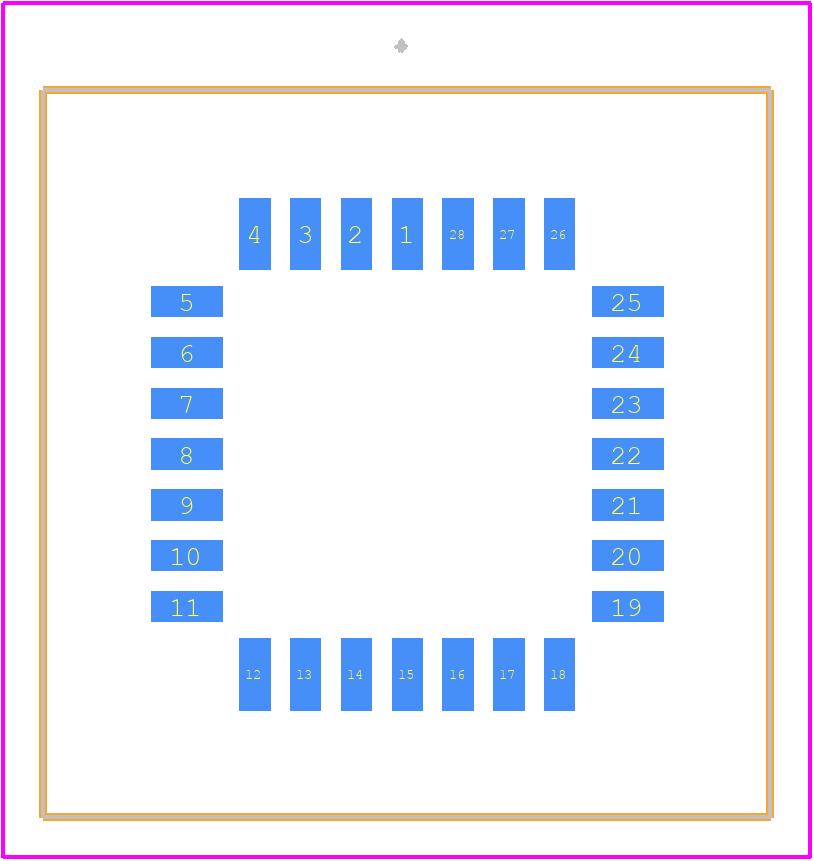

MC-28PLCC-SMT - Multicomp Pro PCB footprint - Other - Other - MC-28PLCC-SMT-2
click to zoom
3D Models
MC-28PLCC-SMT - Multicomp Pro - 3D model - Other - MC-28PLCC-SMT-2
click to zoom

MC-28PLCC-SMT Details

  • Manufacturer Part Number:

    MC-28PLCC-SMT

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    SPC Multicomp

  • YTEOL:

    6.83

  • Body Breadth:

    0.715 inch

  • Body Depth:

    0.181 inch

  • Body Length:

    0.715 inch

  • Contact Configuration:

    7X7

  • Contact Finish Mating:

    SN ON CU

  • Contact Finish Termination:

    TIN

  • Contact Material:

    P-CUSN

  • Contact Style:

    BELLOWED TYPE

  • Current Rating:

    1 A

  • Device Socket Type:

    IC SOCKET

  • Device Type Used On:

    PLCC28

  • Dielectric Withstanding Voltage:

    500VAC V

  • Housing Material:

    GLASS FILLED POLYPHENYLENE SULPHIDE

  • Insulation Resistance:

    1000000000 Ω

  • Mounting Style:

    STRAIGHT

  • Number of Contacts:

    28

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Termination Type:

    SURFACE MOUNT

MC-28PLCC-SMT Frequently Asked Questions (FAQs)

  • The recommended soldering temperature for MC-28PLCC-SMT is between 240°C to 250°C, with a maximum peak temperature of 260°C.
  • Yes, the MC-28PLCC-SMT is RoHS (Restriction of Hazardous Substances) compliant, meaning it meets the European Union's directive on the restriction of certain hazardous substances in electrical and electronic equipment.
  • The operating temperature range for MC-28PLCC-SMT is -40°C to +125°C, making it suitable for a wide range of applications.
  • Yes, the MC-28PLCC-SMT is designed to withstand high-vibration environments, making it suitable for applications such as industrial control systems, automotive systems, and aerospace systems.
  • The MSL of MC-28PLCC-SMT is 1, which means it can withstand a maximum of 30 days in a humidity-controlled environment before soldering.
