MC-44PLCC-SMT - Multicomp Pro

Description: IC & Component Socket, 44 Contacts, PLCC Socket, 1.27 mm, Phosphor Bronze

Download MC-44PLCC-SMT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

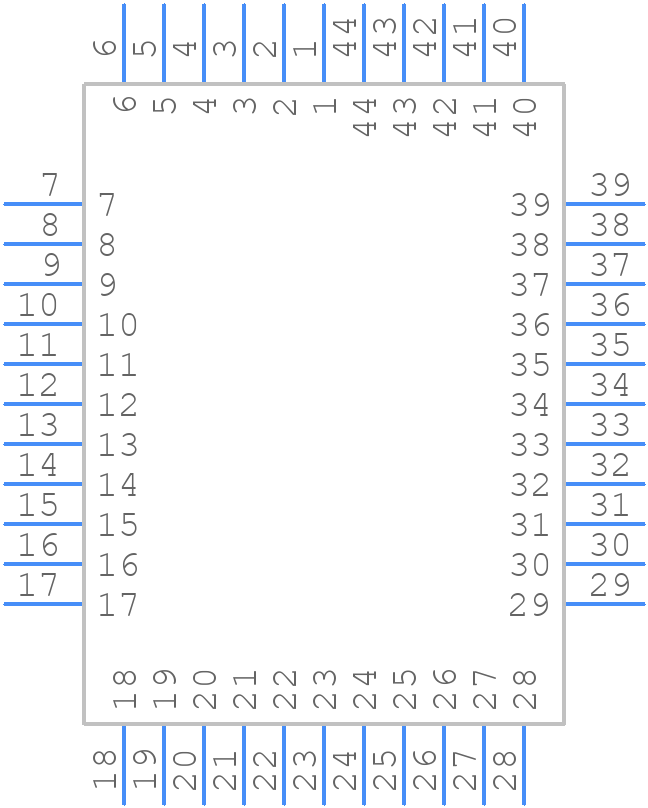

MC-44PLCC-SMT - Multicomp Pro - PCB symbol
click to zoom
PCB Footprints

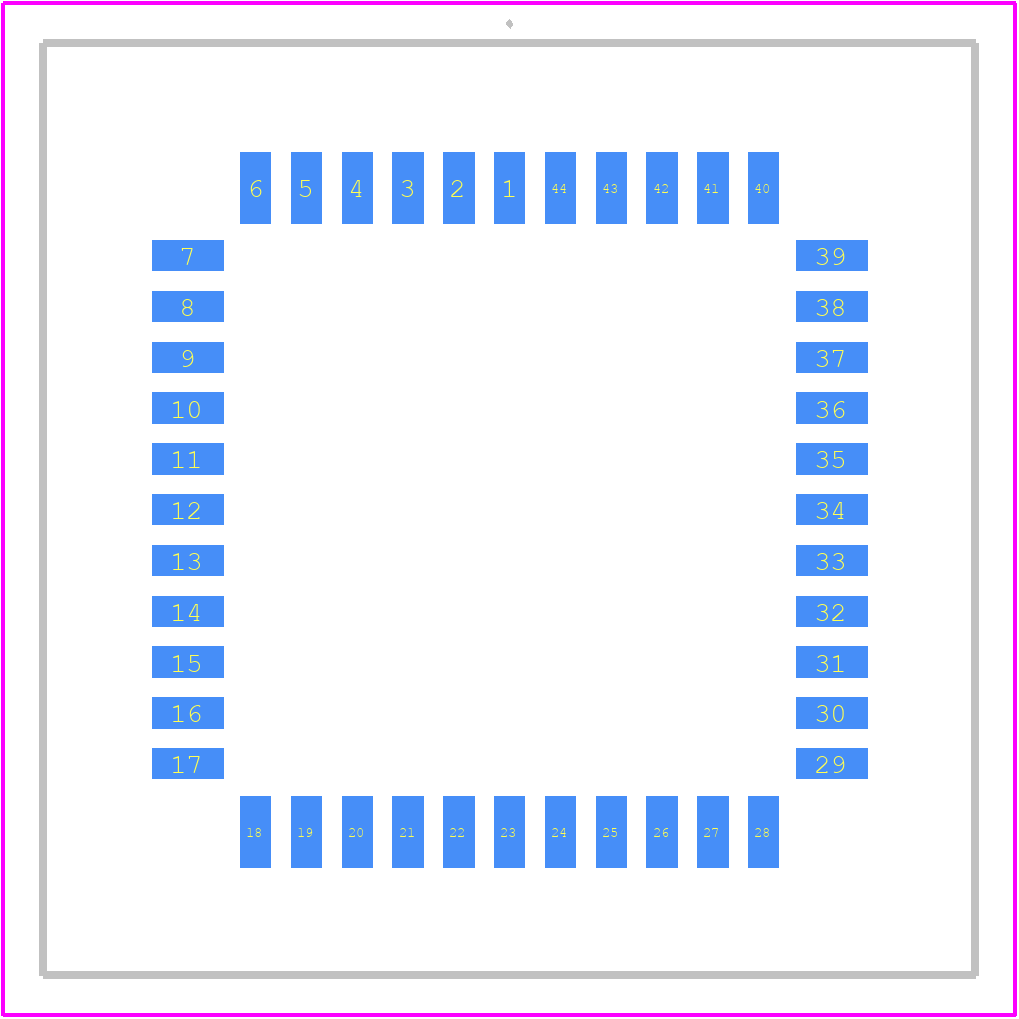

MC-44PLCC-SMT - Multicomp Pro PCB footprint - Other - Other - MC-44PLCC-SMT
click to zoom
3D Models
MC-44PLCC-SMT - Multicomp Pro - 3D model - Other - MC-44PLCC-SMT
click to zoom

MC-44PLCC-SMT Details

  • Manufacturer Part Number:

    MC-44PLCC-SMT

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    SPC Multicomp

  • YTEOL:

    6.83

  • Body Breadth:

    0.917 inch

  • Body Depth:

    0.181 inch

  • Body Length:

    0.917 inch

  • Contact Configuration:

    11X11

  • Contact Finish Mating:

    SN ON CU

  • Contact Finish Termination:

    TIN

  • Contact Material:

    P-CUSN

  • Contact Style:

    BELLOWED TYPE

  • Current Rating:

    1 A

  • Device Socket Type:

    IC SOCKET

  • Device Type Used On:

    PLCC44

  • Dielectric Withstanding Voltage:

    500VAC V

  • Housing Material:

    GLASS FILLED POLYPHENYLENE SULPHIDE

  • Insulation Resistance:

    1000000000 Ω

  • Mounting Style:

    STRAIGHT

  • Number of Contacts:

    44

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Termination Type:

    SURFACE MOUNT

MC-44PLCC-SMT Frequently Asked Questions (FAQs)

  • The recommended soldering temperature for MC-44PLCC-SMT is between 240°C to 250°C, with a maximum peak temperature of 260°C.
  • Yes, MC-44PLCC-SMT is RoHS (Restriction of Hazardous Substances) compliant, meaning it meets the EU's standards for reducing hazardous substances in electronic components.
  • The operating temperature range for MC-44PLCC-SMT is -40°C to +125°C, making it suitable for a wide range of applications.
  • Yes, MC-44PLCC-SMT is designed to withstand high-vibration environments, making it suitable for applications such as automotive, aerospace, and industrial control systems.
  • The typical lead time for MC-44PLCC-SMT varies depending on the supplier and the quantity ordered. However, it is usually around 2-4 weeks for standard orders.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MC-44PLCC-SMT Overview

Use the download button to access the MC-44PLCC-SMT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MC-44, or try a keyword search, such as Sockets and Chip Carriers
