MC-44PLCC - Multicomp Pro

Description: IC & Component Socket, 44 Contacts, PLCC Socket, 2.54 mm, Phosphor Bronze

Download MC-44PLCC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

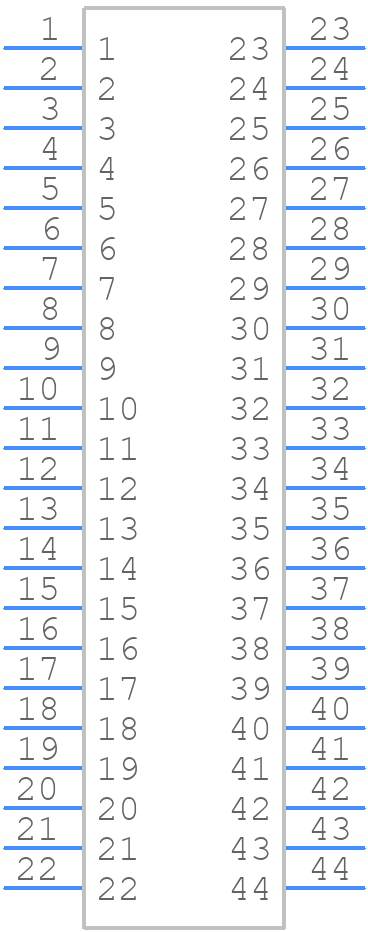

MC-44PLCC - Multicomp Pro - PCB symbol
click to zoom
PCB Footprints

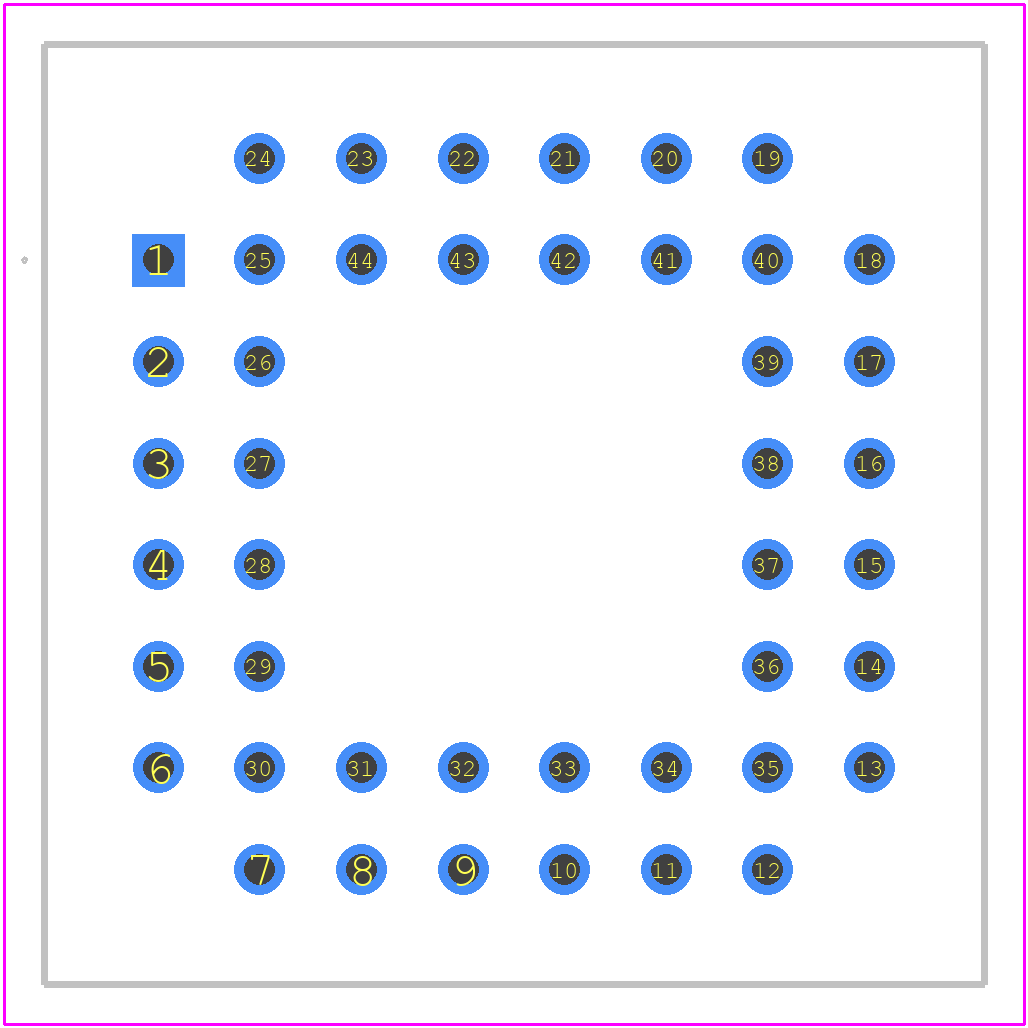

MC-44PLCC - Multicomp Pro PCB footprint - Other - Other - MC-44PLCC_
click to zoom
3D Models
MC-44PLCC - Multicomp Pro - 3D model - Other - MC-44PLCC_
click to zoom

MC-44PLCC Details

  • Manufacturer Part Number:

    MC-44PLCC

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    SPC Multicomp

  • YTEOL:

    0

  • Body Breadth:

    0.925 inch

  • Body Depth:

    0.318 inch

  • Body Length:

    0.925 inch

  • Contact Configuration:

    11X11

  • Contact Finish Mating:

    SN ON CU

  • Contact Finish Termination:

    TIN OVER COPPER

  • Contact Material:

    P-CUSN

  • Contact Style:

    BELLOWED TYPE

  • Current Rating:

    1 A

  • Device Socket Type:

    IC SOCKET

  • Device Type Used On:

    PLCC44

  • Dielectric Withstanding Voltage:

    500VAC V

  • Housing Material:

    GLASS FILLED POLYBUTYLENE TEREPHTHALATE

  • Insulation Resistance:

    1000000000 Ω

  • Mounting Style:

    STRAIGHT

  • Number of Contacts:

    44

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -20 °C

  • Termination Type:

    SOLDER

MC-44PLCC Frequently Asked Questions (FAQs)

  • The recommended storage temperature range for MC-44PLCC is -40°C to 125°C.
  • Yes, the MC-44PLCC is compatible with lead-free soldering processes, making it suitable for RoHS-compliant applications.
  • The maximum operating frequency of the MC-44PLCC is 100 MHz, making it suitable for high-speed applications.
  • Yes, the MC-44PLCC requires anti-static packaging and handling to prevent damage from electrostatic discharge (ESD).
  • Yes, the MC-44PLCC is designed to operate in harsh environmental conditions, including high temperatures, humidity, and vibration.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MC-44PLCC Overview

Use the download button to access the MC-44PLCC schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MC-44, or try a keyword search, such as Sockets and Chip Carriers
