Part Image

MC000212 - Multicomp Pro

Description: 5.08mm Pluggable Right Angle Header, TERMINAL BLOCK, HEADER, 6POS, TH, 16 Amperes, 300V AC, -40°C to +105°C

Download MC000212 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MC000212 - Multicomp Pro - PCB symbol
click to zoom

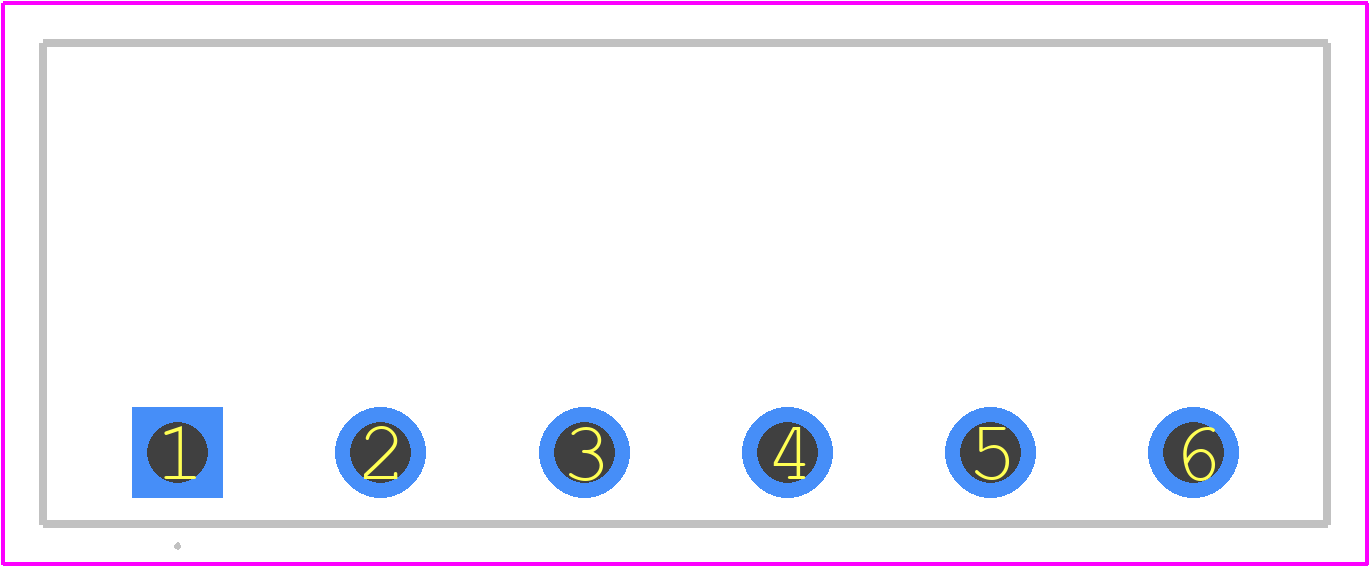

PCB Footprints
MC000212 - Multicomp Pro PCB footprint - Other - Other - MC000212-2
click to zoom
3D Models
MC000212 - Multicomp Pro - 3D model - Other - MC000212-2
click to zoom

MC000212 Details

  • Manufacturer Part Number:

    MC000212

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    SPC Multicomp

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MC000212 Overview

Use the download button to access the MC000212 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MC000, or try a keyword search, such as Terminals and Terminal Blocks
