MC002809 - Multicomp Pro

Description: USB Connector, USB Type C, USB 3.1, Receptacle, 24 Ways, Surface Mount, Vertical

Download MC002809 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

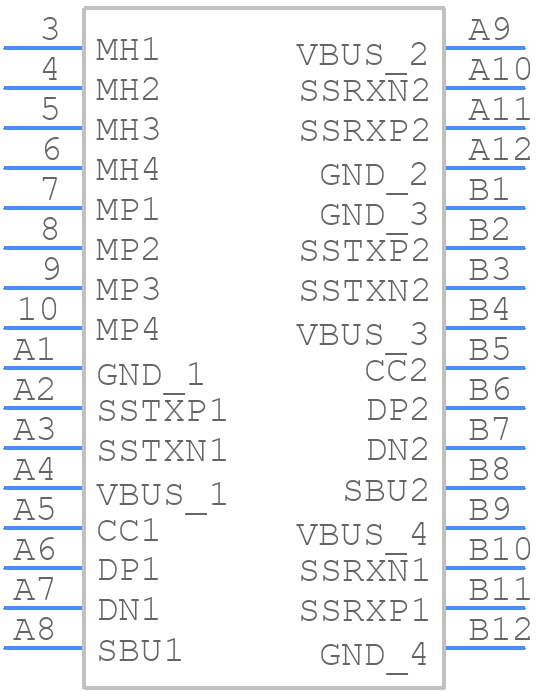

MC002809 - Multicomp Pro - PCB symbol
click to zoom
PCB Footprints
MC002809 - Multicomp Pro PCB footprint - Other - Other - MC002809-4
click to zoom
3D Models
MC002809 - Multicomp Pro - 3D model - Other - MC002809-4
click to zoom

MC002809 Details

  • Manufacturer Part Number:

    MC002809

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    SPC Multicomp

  • Connector Type:

    USB CONNECTOR

MC002809 Frequently Asked Questions (FAQs)

  • The recommended storage temperature for MC002809 is -40°C to 125°C.
  • Yes, MC002809 is RoHS (Restriction of Hazardous Substances) compliant, meaning it meets the EU's standards for reducing hazardous substances in electronic components.
  • The operating temperature range for MC002809 is -40°C to 85°C.
  • The MSL of MC002809 is 3, which means it can withstand being exposed to a relative humidity of 60% at 30°C for 168 hours.
  • Yes, MC002809 is suitable for high-reliability applications, such as aerospace, defense, and medical devices, due to its robust design and testing.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MC002809 Overview

Use the download button to access the MC002809 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MC002, or try a keyword search, such as Telecom and Datacom Connectors
