A good PCB layout for the MC100E111FNR2G should minimize signal trace lengths, use a solid ground plane, and keep the input and output traces separate to reduce crosstalk. Additionally, the device should be placed close to the power supply decoupling capacitors to reduce noise.
Proper termination of the MC100E111FNR2G involves using a combination of series and parallel resistors to match the impedance of the transmission line. The datasheet provides guidelines for termination, but it's also recommended to consult with onsemi's application notes and simulation tools for specific guidance.
The MC100E111FNR2G has an operating temperature range of -40°C to +85°C, but it's recommended to derate the device's performance at higher temperatures to ensure reliability. Consult the datasheet for specific derating guidelines.
The MC100E111FNR2G has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures during assembly and testing. This includes using ESD-safe materials, grounding straps, and ionizers to reduce static electricity.
The MC100E111FNR2G requires a combination of high-frequency and low-frequency decoupling capacitors to filter out noise and ensure stable operation. A good starting point is to use 0.1uF and 10uF capacitors in parallel, but the specific values may vary depending on the application and PCB layout.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MC100E111FNR2G Overview

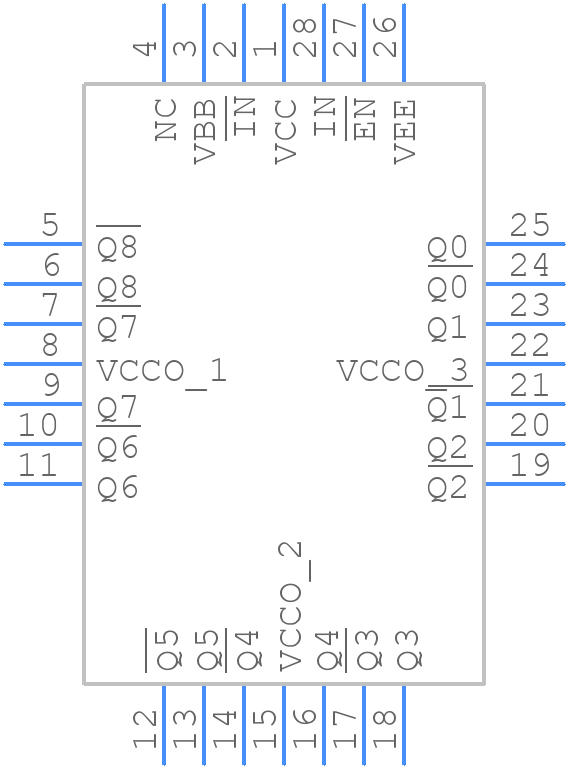

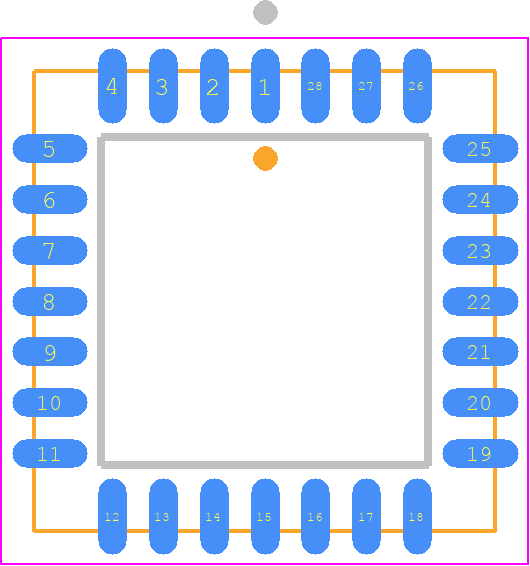

Use the download button to access the MC100E111FNR2G schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like MC100,
or try a keyword search, such as Clock Drivers
