A good PCB layout for the MC100E131FNG involves keeping the input and output traces as short as possible, using a solid ground plane, and minimizing vias and layer changes. It's also recommended to use a 50-ohm transmission line impedance for the input and output traces.
To ensure proper biasing, make sure to connect the VCC pin to a stable 3.3V power supply, and the VEE pin to a stable -3.3V power supply. Also, ensure that the input signals are within the recommended common-mode voltage range of 1.5V to 2.5V.
The MC100E131FNG is capable of supporting data rates up to 3.2 Gbps, making it suitable for high-speed applications such as HDMI, DisplayPort, and PCIe.
To ensure proper thermal management, make sure to provide adequate heat sinking and airflow around the device. The MC100E131FNG has a thermal pad on the bottom of the package, which should be connected to a heat sink or a thermal pad on the PCB.
The MC100E131FNG has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures during assembly and testing. The device can withstand ESD voltages up to 2 kV according to the Human Body Model (HBM) and 250 V according to the Machine Model (MM).
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MC100E131FNG Overview

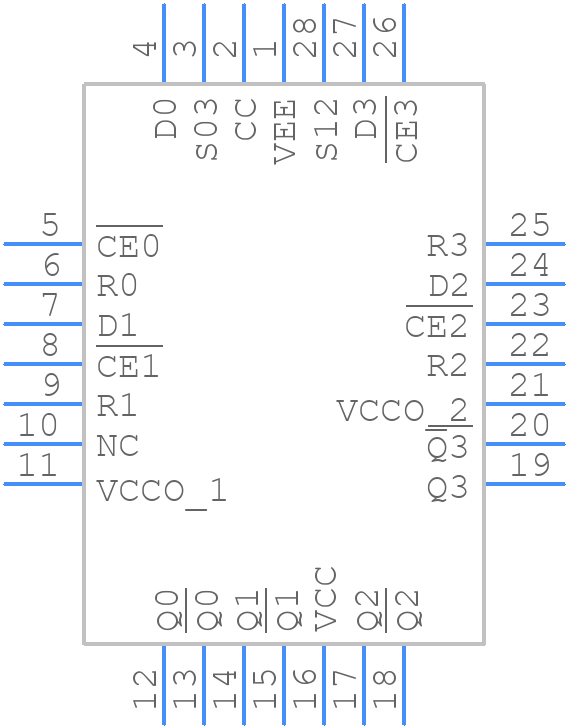

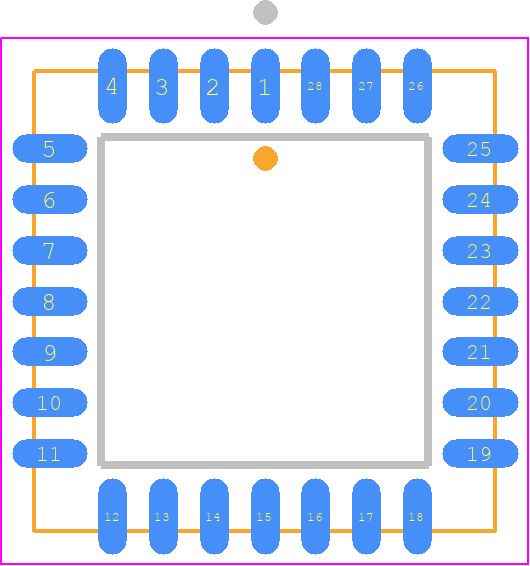

Use the download button to access the MC100E131FNG schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like MC100,
or try a keyword search, such as FF/Latches
