MC100E137FNR2G - onsemi

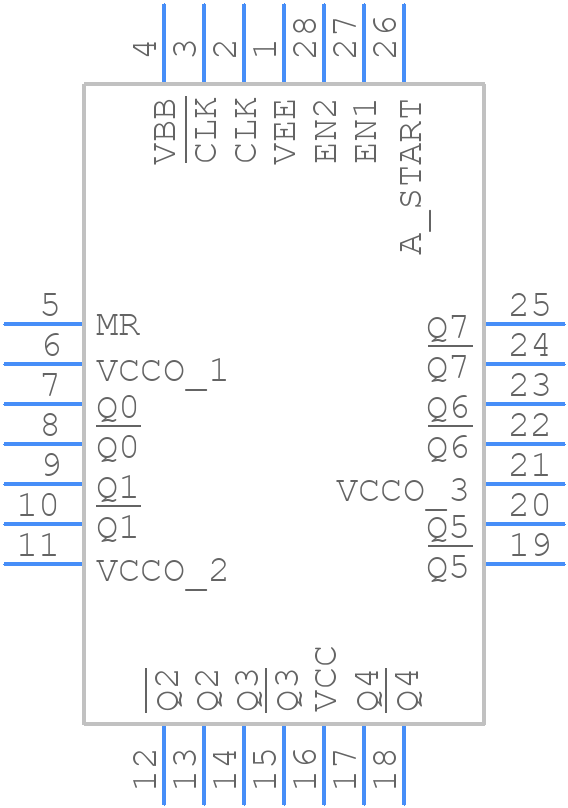

MC100E137FNR2G Details

• Manufacturer Part Number:

  MC100E137FNR2G

• Brand Name:

  ON Semiconductor

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

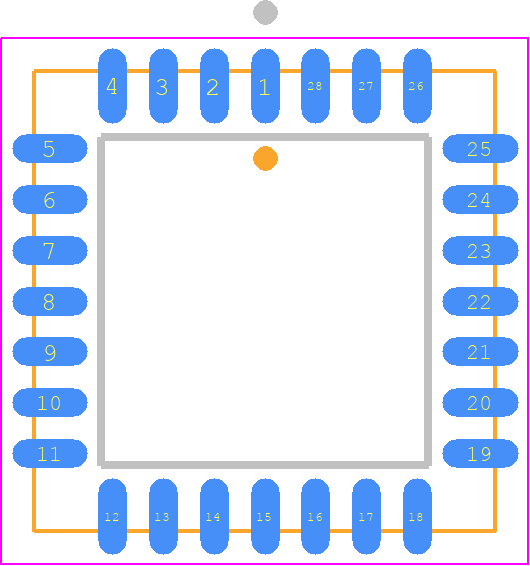

• Part Package Code:

  QLCC

• Package Description:

  LEAD FREE, PLASTIC, LCC-28

• Pin Count:

  28

• Manufacturer Package Code:

  776-02

• HTS Code:

  8542.39.00.60

• Manufacturer:

  onsemi

• YTEOL:

  0

• Additional Feature:

  NECL MODE: VCC = 0V WITH VEE = -4.2V TO -5.7V

• Count Direction:

  UP

• Family:

  100E

• JESD-30 Code:

  S-PQCC-J28

• JESD-609 Code:

  e3

• Length:

  11.505 mm

• Load/Preset Input:

  YES

• Logic IC Type:

  BINARY COUNTER

• Max Frequency@Nom-Sup:

  1800000000 Hz

• Mode of Operation:

  ASYNCHRONOUS

• Moisture Sensitivity Level:

  3

• Number of Bits:

  8

• Number of Functions:

  1

• Number of Terminals:

  28

• Operating Temperature-Max:

  85 °C

• Output Characteristics:

  OPEN-EMITTER

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  QCCJ

• Package Equivalence Code:

  LDCC28,.5SQ

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER

• Packing Method:

  TR

• Peak Reflow Temperature (Cel):

  260

• Power Supply Current-Max (ICC):

  167 mA

• Prop. Delay@Nom-Sup:

  2.2 ns

• Propagation Delay (tpd):

  4.8 ns

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  4.57 mm

• Supply Voltage-Max (Vsup):

  5.7 V

• Supply Voltage-Min (Vsup):

  4.2 V

• Supply Voltage-Nom (Vsup):

  5 V

• Surface Mount:

  YES

• Technology:

  ECL

• Temperature Grade:

  OTHER

• Terminal Finish:

  TIN

• Terminal Form:

  J BEND

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  QUAD

• Trigger Type:

  POSITIVE EDGE

• Width:

  11.505 mm

• fmax-Min:

  1800 MHz
