Description:ESD Protection: >2 KV HBM, >100 V MM; Typical Operating Frequency Up to 1100 MHz; Phase Noise -90 dBc/Hz at 25 kHz Typical; Low-Power 19 mA at 5.0 Vdc Power Supply; PECL Mode Operating Range: VCC= 5.0 V with VEE= 0 V; NECL Mode Operating Range: VCC= 0 V with VEE= -5.2 V; Input Capacitance= 6.0 pF (TYP); Meets or Exceeds JEDEC Spec EIA/JESD78 IC Latchup Test; Maximum Series Resistance for L (External Inductance)= 50 W (TYP); Moisture Sensitivity Level 1. For Additional Information, see Application Note AND80
A good PCB layout practice for the MC100EL1648DG is to use a multi-layer board with a solid ground plane, keep the signal traces short and away from the edges, and use a 50-ohm impedance-controlled trace width. Additionally, use a common mode filter or a ferrite bead to reduce EMI emissions.
To ensure proper termination, use a 50-ohm termination resistor at the far end of the transmission line, and a 50-ohm series resistor at the driver output. Also, make sure to match the transmission line impedance to the driver output impedance.
The maximum operating frequency of the MC100EL1648DG is 1.6 GHz. As the frequency increases, the signal attenuation and dispersion also increase, affecting signal integrity. To mitigate this, use a high-frequency capable PCB material, and consider using a signal repeater or a signal conditioner to boost the signal.
To handle thermal management, ensure good airflow around the device, use a heat sink or a thermal pad, and consider using a thermal interface material. Also, follow the recommended power dissipation guidelines and thermal design considerations outlined in the datasheet.
The MC100EL1648DG has built-in ESD protection, but additional measures can be taken, such as using ESD protection diodes, and following proper handling and storage procedures. For latch-up prevention, use a latch-up immune design, and follow the recommended operating conditions and power sequencing guidelines.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MC100EL1648DG Overview

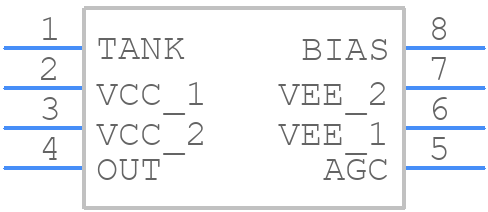

Use the download button to access the MC100EL1648DG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MC100,
or try a keyword search, such as Other Signal Circuits
