Description:ESD Protection: >2 KV HBM, >100 V MM; Typical Operating Frequency Up to 1100 MHz; Phase Noise -90 dBc/Hz at 25 kHz Typical; Low-Power 19 mA at 5.0 Vdc Power Supply; PECL Mode Operating Range: VCC= 5.0 V with VEE= 0 V; NECL Mode Operating Range: VCC= 0 V with VEE= -5.2 V; Input Capacitance= 6.0 pF (TYP); Meets or Exceeds JEDEC Spec EIA/JESD78 IC Latchup Test; Maximum Series Resistance for L (External Inductance)= 50 W (TYP); Moisture Sensitivity Level 1. For Additional Information, see Application Note AND80
A good PCB layout for the MC100EL1648DTR2G involves keeping the signal traces short and direct, using a solid ground plane, and minimizing vias and layer changes. It's also recommended to use a 50-ohm transmission line impedance and to terminate the lines with 50-ohm resistors.
To ensure signal integrity with the MC100EL1648DTR2G, it's essential to maintain a controlled impedance environment, minimize signal reflections, and use proper termination techniques. Additionally, using a signal integrity analysis tool can help identify potential issues before they become problems.
The maximum operating frequency of the MC100EL1648DTR2G is 3.2 GHz. However, the actual operating frequency may be limited by the system design, PCB layout, and signal quality.
Thermal management for the MC100EL1648DTR2G involves ensuring good airflow, using a heat sink or thermal pad, and keeping the device away from heat sources. It's also essential to follow the recommended operating temperature range of -40°C to 125°C.
The MC100EL1648DTR2G has built-in ESD protection, but it's still essential to follow proper handling and storage procedures to prevent damage. It's recommended to use an ESD wrist strap or mat, and to handle the device by the body rather than the pins.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MC100EL1648DTR2G Overview

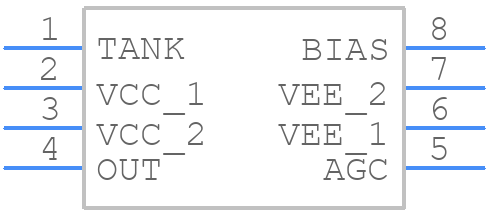

Use the download button to access the MC100EL1648DTR2G schematic symbol, PCB footprint, and 3D model.
