A good PCB layout for the MC100EL32DR2G involves keeping the signal traces short and away from noise sources, using a solid ground plane, and placing decoupling capacitors close to the device. It's also recommended to use a low-impedance power supply and to minimize the number of vias under the device.
To ensure reliable operation of the MC100EL32DR2G in high-temperature environments, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive PCB material, and keeping the device within its recommended operating temperature range.
The MC100EL32DR2G has built-in ESD protection, but it's still important to follow proper ESD handling procedures during assembly and testing. This includes using ESD-safe materials, grounding personnel and equipment, and minimizing the risk of static discharge.
The MC100EL32DR2G is not specifically designed for radiation-hardened applications, and its performance in such environments is not guaranteed. If radiation hardness is required, it's recommended to use a device that is specifically designed and qualified for such applications.
The recommended termination resistors for the MC100EL32DR2G depend on the specific application and signal frequencies involved. In general, it's recommended to use a termination resistor that matches the impedance of the transmission line, typically in the range of 50-100 ohms.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MC100EL32DR2G Overview

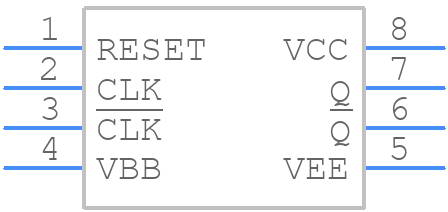

Use the download button to access the MC100EL32DR2G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MC100,
or try a keyword search, such as Prescaler/Multivibrators
