A good PCB layout for the MC100EL33DG involves keeping the input and output traces short and symmetrical, using a solid ground plane, and minimizing vias and layer changes. It's also recommended to use a low-impedance path for the VCC and GND pins.
Proper termination for the MC100EL33DG involves using a 50-ohm termination resistor at the far end of the transmission line, and a 50-ohm series resistor at the driver output. This helps to minimize reflections and ensure signal integrity.
The MC100EL33DG has an operating temperature range of -40°C to +85°C. However, it's recommended to derate the device's performance at higher temperatures to ensure reliable operation.
While the MC100EL33DG is designed for PECL (Positive Emitter-Coupled Logic) applications, it can be used in non-PECL applications with proper biasing and termination. However, the device's performance may vary, and additional circuitry may be required to achieve the desired output levels.
The MC100EL33DG has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures during assembly and testing. This includes using ESD-safe materials, grounding straps, and minimizing static electricity generation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MC100EL33DG Overview

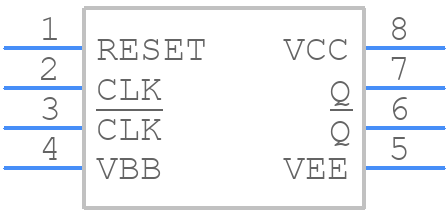

Use the download button to access the MC100EL33DG schematic symbol, PCB footprint, and 3D model.
