Description:670 ps Typical Propagation Delay; ESD Protection: >2 KV HBM, >200 V MM; The 100 Series Contains Temperature Compensation; Operating Range: VCC = 4.75 V to 5.25 V; VEE = -4.2 V to -5.5 V; GND= 0 V; Internal Input Pulldown Resistors; Q Output will Default LOW with Inputs Open or at VEE; Flammability Rating: UL-94 code V-0 @ 1/8", Oxygen Index 28 to 34; Transistor Count = 282 devices; Pb-Free Packages are Available
A good PCB layout for the MC100EL91DWG involves keeping the input and output traces as short as possible, using a solid ground plane, and minimizing the distance between the device and the decoupling capacitors. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure proper decoupling, place a 0.1uF ceramic capacitor between the VCC and GND pins, as close to the device as possible. Additionally, use a 10uF bulk capacitor between the power supply and the PCB's power plane to filter out noise and ripple.
The MC100EL91DWG is specified to operate up to 1.5 GHz, but it can be pushed to higher frequencies with proper PCB design and layout. However, it's essential to ensure that the device is properly decoupled and the PCB is designed to minimize signal reflections and losses.
The MC100EL91DWG has a thermal pad on the bottom of the package, which should be connected to a thermal plane on the PCB. Ensure good thermal conductivity by using a thermal interface material (TIM) between the device and the PCB. Additionally, provide adequate airflow around the device to prevent overheating.
The MC100EL91DWG has built-in ESD protection, but it's still essential to follow proper ESD handling procedures during assembly and testing. Use an ESD wrist strap or mat, and ensure that the PCB and components are properly grounded to prevent static discharge.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MC100EL91DWG Overview

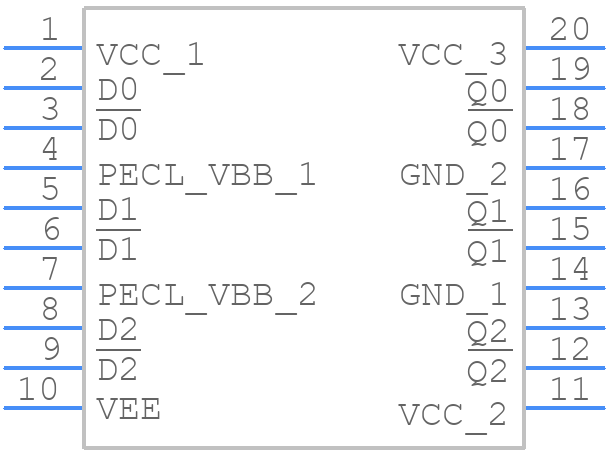

Use the download button to access the MC100EL91DWG schematic symbol, PCB footprint, and 3D model.
