A good PCB layout for the MC100ELT21DTG involves keeping the input and output traces short and symmetrical, using a solid ground plane, and minimizing vias and layer changes. It's also recommended to use a low-impedance path for the VCC and GND pins.
Proper termination for the MC100ELT21DTG involves using a 50-ohm termination resistor at the far end of the transmission line, and a 100-ohm differential termination resistor at the receiver end. Additionally, the signal traces should be impedance-matched to the transmission line.
The MC100ELT21DTG has an operating temperature range of -40°C to +85°C, but it's recommended to derate the device's performance at temperatures above 70°C to ensure reliable operation.
While the MC100ELT21DTG is optimized for 50-ohm systems, it can be used in non-50-ohm systems with proper impedance matching and termination. However, this may require additional circuitry and design considerations to ensure signal integrity.
The MC100ELT21DTG has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures during assembly and testing. Additionally, consider adding external ESD protection devices, such as TVS diodes, to further protect the device.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MC100ELT21DTG Overview

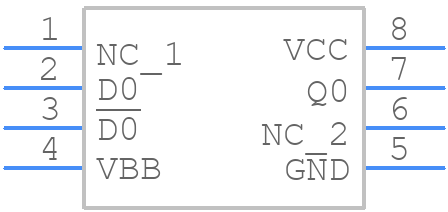

Use the download button to access the MC100ELT21DTG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MC100,
or try a keyword search, such as Level Translators
