Description:250 ps Typical Propagation Delay; Maximum Frequency > 3 Ghz Typical; NECL Mode Operating Range: VCC=0 V with VEE = -3.0V to -5.5V; PECL mode Operating Range: 3.0V to 5.5V VCC with VEE = 0V; Open Input Default State; Pb-Free Packages are Available
The recommended PCB layout for the MC100EP101MNG involves using a symmetrical layout with a central ground plane, minimizing trace lengths, and using controlled impedance lines to reduce signal reflections and crosstalk. It's also recommended to place the device near the center of the board and use a common ground point for the device and the surrounding components.
The MC100EP101MNG has a maximum junction temperature of 150°C. To handle thermal management, it's recommended to provide a thermal pathway from the device to a heat sink or a metal chassis, and to ensure good air flow around the device. Additionally, the device should be mounted on a multi-layer PCB with a thermal via to dissipate heat effectively.
The MC100EP101MNG has ESD protection built-in, but it's still recommended to follow proper ESD handling precautions during assembly and testing. This includes using an ESD wrist strap, ESD mat, and ESD-safe packaging materials. It's also recommended to avoid touching the device pins during handling and to use a soldering iron with an ESD-safe tip.
The MC100EP101MNG is specified to operate up to 3.2 GHz, but it's not recommended to use the device beyond this frequency range. Operating the device beyond the specified frequency range may result in degraded performance, increased power consumption, and reduced reliability. If a higher frequency range is required, a different device should be selected.
To troubleshoot issues with the MC100EP101MNG, it's recommended to start by reviewing the device datasheet and application notes to ensure that the device is used within its specified operating conditions. Next, use a signal generator and oscilloscope to verify the input and output signals, and check for any signs of signal distortion, attenuation, or noise. If the issue persists, it may be necessary to perform a more detailed analysis using a vector network analyzer or a logic analyzer.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MC100EP101MNG Overview

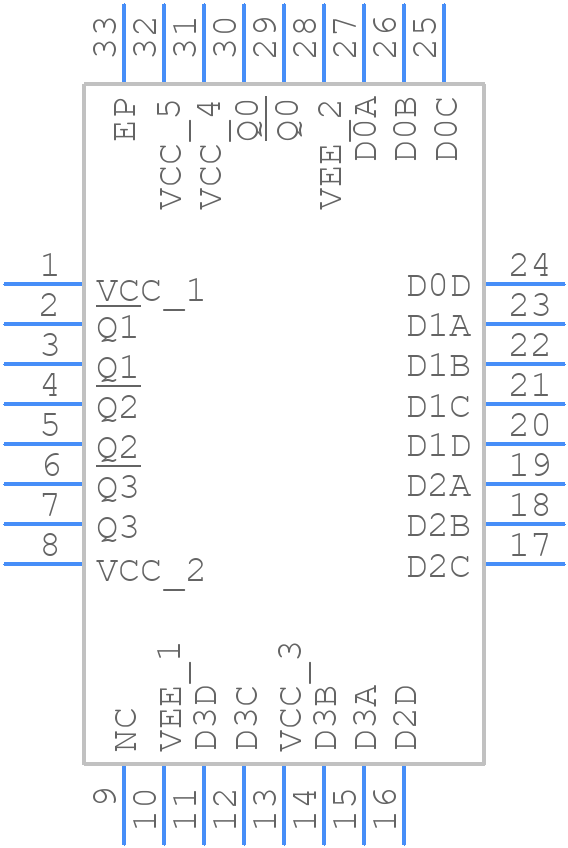

Use the download button to access the MC100EP101MNG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MC100,
