A good PCB layout for the MC100EP195FA should minimize signal trace lengths, use a solid ground plane, and keep the input and output traces separate to reduce crosstalk. Additionally, the device should be placed close to the power supply and decoupling capacitors should be used to filter out noise.
Proper termination of the MC100EP195FA is critical for high-speed signals. The device requires a 50Ω termination resistor at the output, and the input should be terminated with a 50Ω resistor to ground. Additionally, the signal traces should be impedance-matched to the device's output impedance to minimize reflections.
The MC100EP195FA has an operating temperature range of -40°C to +85°C. However, it's recommended to operate the device within a temperature range of 0°C to +70°C for optimal performance and reliability.
The MC100EP195FA has built-in ESD protection, but it's still recommended to take precautions during handling and assembly. Use an ESD wrist strap or mat, and avoid touching the device's pins or exposed metal surfaces. Additionally, use ESD-protected packaging and storage materials.
A good power supply decoupling scheme for the MC100EP195FA should include a 10uF ceramic capacitor in parallel with a 1uF ceramic capacitor, both placed close to the device's power pins. This helps to filter out noise and ensure a stable power supply.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MC100EP195FA Overview

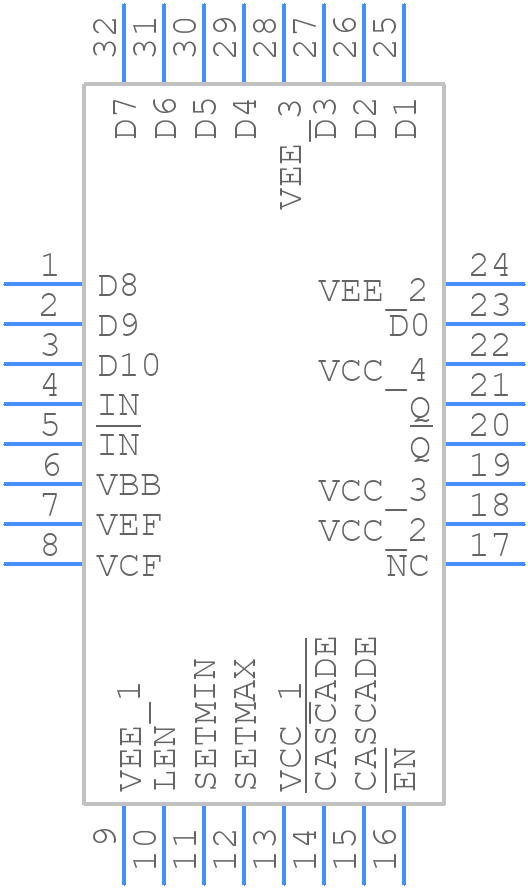

Use the download button to access the MC100EP195FA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MC100,
or try a keyword search, such as Delay Lines
