MC100EP196BMNG - onsemi

Description: Maximum Input Clock Frequency >1.2 GHz Typical; Programmable Range: 0 ns to 10 ns; Delay Range: 2.2 ns to 12.4 ns; 10 ps Increments; Linearity 40 ps max; PECL Mode Operating Range:VCC = 3.0 V to 3.6 V with VEE = 0 V; NECL Mode Operating Range:VCC = 0 V with VEE = 3.0 V to 3.6 V; IN/INb Inputs Accept LVPECL, LVNECL, LVDS Levels; A Logic High on the ENb Pin Will Force Q to Logic Low; D10:0 Can Select Either LVPECL, LVCMOS, or LVTTL Input Levels; VBB Output Reference Voltage

Download MC100EP196BMNG Model

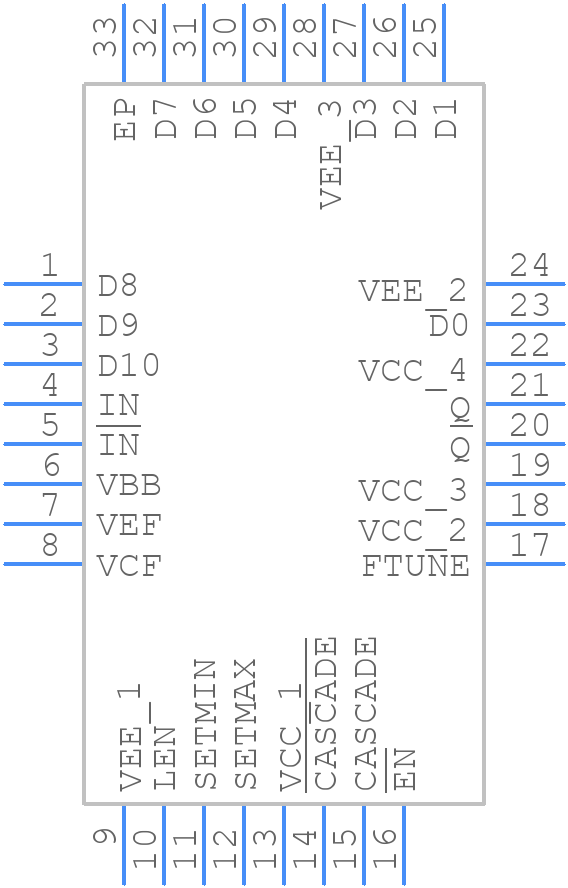

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MC100EP196BMNG - onsemi PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN-32 5X5 CASE 488AM -
click to zoom
3D Models
MC100EP196BMNG - onsemi  - 3D model - Quad Flat No-Lead - QFN-32 5X5 CASE 488AM -
click to zoom

MC100EP196BMNG Details

  • Manufacturer Part Number:

    MC100EP196BMNG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    QFN32, 5x5, 0.5P, 3.1x3.1EP

  • Package Description:

    QFN-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    488AM

  • Country Of Origin:

    Thailand

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    3

  • Additional Feature:

    NECL MODE: VCC=0 WITH VEE=-3.0 V TO -3.6 V

  • Family:

    100E

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Logic IC Type:

    ACTIVE DELAY LINE

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Taps/Steps:

    1023

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Polarity:

    COMPLEMENTARY

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    RAIL

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    175 mA

  • Programmable Delay Line:

    YES

  • Prop. Delay@Nom-Sup:

    15.25 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    ECL

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Total Delay-Nom (td):

    12.4 ns

  • Width:

    5 mm

MC100EP196BMNG Frequently Asked Questions (FAQs)

  • A good PCB layout for the MC100EP196BMNG involves keeping the input and output traces as short as possible, using a solid ground plane, and minimizing the distance between the device and the bypass capacitors. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure proper biasing, make sure to connect the VCC pin to a stable 3.3V power supply, and the VEE pin to a stable -3.3V power supply. Also, ensure that the input signals are within the recommended common-mode voltage range of -2.5V to 2.5V.
  • The maximum operating frequency of the MC100EP196BMNG is 1.9 GHz. However, the actual operating frequency may be limited by the specific application and the quality of the PCB layout.
  • The MC100EP196BMNG has a maximum junction temperature of 150°C. To ensure proper thermal management, use a heat sink or a thermal pad to dissipate heat, and ensure good airflow around the device. Also, avoid overheating the device during soldering or rework.
  • The MC100EP196BMNG has an ESD rating of 2 kV human body model (HBM) and 100 V machine model (MM). To ensure ESD protection, use ESD-sensitive handling procedures, and consider adding external ESD protection devices such as TVS diodes or ESD arrays.
