NECL MODE OPERATING RANGE: VCC = 0 V WITH VEE = -3.0 V TO -5.5 V
Family:
100E
JESD-30 Code:
R-PDSO-G20
JESD-609 Code:
e3
Length:
12.8 mm
Logic IC Type:
MULTIPLEXER
Moisture Sensitivity Level:
3
Number of Functions:
2
Number of Inputs:
2
Number of Outputs:
1
Number of Terminals:
20
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output Characteristics:
SERIES-RESISTOR
Output Polarity:
COMPLEMENTARY
Package Body Material:
PLASTIC/EPOXY
Package Code:
SOP
Package Equivalence Code:
SOP20,.4
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Packing Method:
RAIL
Peak Reflow Temperature (Cel):
260
Power Supply Current-Max (ICC):
80 mA
Prop. Delay@Nom-Sup:
0.5 ns
Propagation Delay (tpd):
0.47 ns
Qualification Status:
Not Qualified
Seated Height-Max:
2.65 mm
Supply Voltage-Max (Vsup):
5.5 V
Supply Voltage-Min (Vsup):
3 V
Supply Voltage-Nom (Vsup):
3.3 V
Surface Mount:
YES
Technology:
ECL
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Matte Tin (Sn) - annealed
Terminal Form:
GULL WING
Terminal Pitch:
1.27 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
7.5 mm
MC100EP56DWG Frequently Asked Questions (FAQs)
A good PCB layout for the MC100EP56DWG should minimize signal trace lengths, use a solid ground plane, and keep the input and output traces separate to reduce crosstalk. Additionally, it's recommended to use a 50-ohm transmission line impedance and to place the device close to the signal source to minimize signal degradation.
To ensure proper termination, use a 50-ohm termination resistor at the far end of the transmission line, and make sure the signal trace impedance matches the resistor value. Additionally, consider using a series termination resistor at the driver output to reduce signal reflections.
The MC100EP56DWG has an operating temperature range of -40°C to +85°C. However, it's recommended to derate the device's performance at higher temperatures to ensure reliable operation.
While the MC100EP56DWG is optimized for 50-ohm systems, it can be used in non-50-ohm systems with some performance degradation. However, it's essential to recalculate the termination resistors and adjust the PCB layout accordingly to minimize signal reflections and ensure reliable operation.
To protect the MC100EP56DWG from electrostatic discharge (ESD), use ESD-sensitive handling procedures during assembly and installation. Additionally, consider adding ESD protection devices, such as TVS diodes or ESD arrays, to the PCB design to protect the device from external ESD events.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MC100EP56DWG Overview

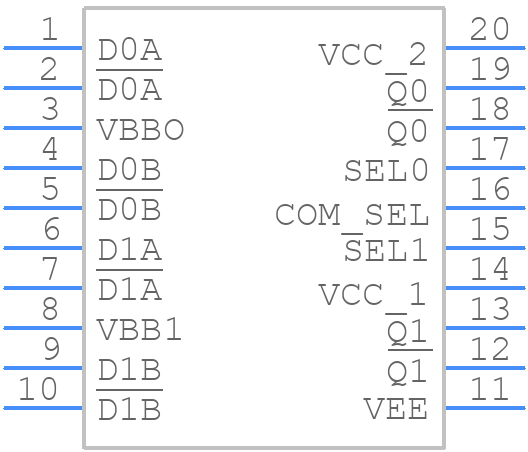

Use the download button to access the MC100EP56DWG schematic symbol, PCB footprint, and 3D model.
