SAFETY CLAMP ON INPUTS, CAN ALSO OPERATE WITH -3V TO -5.5V IN NECL MODE
Delay-Max:
0.37 ns
Input Characteristics:
DIFFERENTIAL
Interface IC Type:
ECL TO PECL TRANSLATOR
JESD-30 Code:
R-PDSO-G20
JESD-609 Code:
e4
Length:
6.5 mm
Moisture Sensitivity Level:
1
Number of Bits:
1
Number of Functions:
3
Number of Terminals:
20
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output Characteristics:
OPEN-EMITTER
Output Polarity:
COMPLEMENTARY
Package Body Material:
PLASTIC/EPOXY
Package Code:
TSSOP
Package Equivalence Code:
TSSOP20,.25
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.2 mm
Supply Current-Max:
78 mA
Supply Voltage-Max:
5.5 V
Supply Voltage-Min:
3 V
Supply Voltage-Nom:
3.3 V
Supply Voltage1-Max:
-3 V
Supply Voltage1-Min:
-5.5 V
Supply Voltage1-Nom:
-5 V
Surface Mount:
YES
Technology:
ECL
Temperature Grade:
INDUSTRIAL
Terminal Finish:
NICKEL PALLADIUM GOLD
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Width:
4.4 mm
MC100EP90DT Frequently Asked Questions (FAQs)
A good PCB layout for the MC100EP90DT should minimize signal trace lengths, use a solid ground plane, and keep the input and output traces separate to reduce crosstalk. Additionally, it's recommended to use a low-ESR capacitor for power decoupling and to place it close to the device.
Proper termination of the MC100EP90DT is critical for high-speed signals. Use a 50-ohm termination resistor at the far end of the transmission line, and consider using a series termination resistor at the driver output. Also, ensure that the PCB trace impedance matches the termination resistor value.
The MC100EP90DT is rated for operation from -40°C to 125°C. However, it's essential to consider the derating of the device's performance and power consumption at higher temperatures to ensure reliable operation.
While the MC100EP90DT is optimized for 50-ohm systems, it can be used in non-50-ohm systems with some performance degradation. However, it's crucial to consider the impact of impedance mismatch on signal integrity and to adjust the termination and PCB layout accordingly.
The MC100EP90DT has built-in ESD protection, but it's still essential to follow proper ESD handling procedures during assembly and testing. Use an ESD wrist strap or mat, and ensure that the device is handled in a static-safe environment.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MC100EP90DT Overview

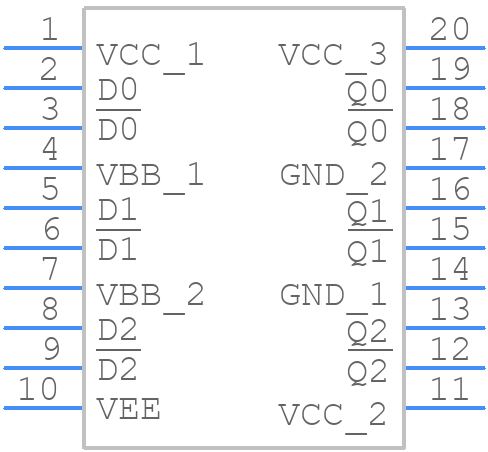

Use the download button to access the MC100EP90DT schematic symbol, PCB footprint, and 3D model.
