MC100EP91MNG - onsemi

Description: Maximum Input Clock Frequency > 2.0 GHz Typical; Maximum Input Data Rate > 2.0 Gb/s Typical; 500 ps Typical Propagation Delay; Operating Range: VCC = 2.375 V to 3.8 V; VEE = 3.0 V to 5.5 V; GND = 0 V; Q Output will Default LOW with Inputs Open or at GND

Download MC100EP91MNG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

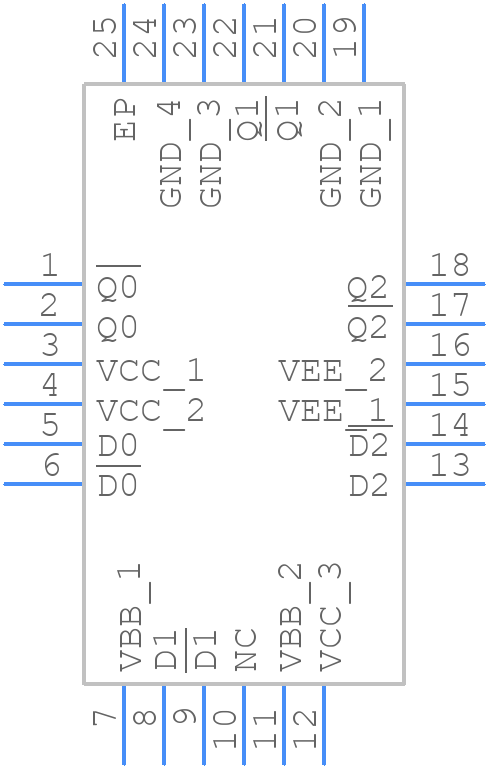

Symbol
MC100EP91MNG - onsemi - PCB symbol
click to zoom
PCB Footprints
MC100EP91MNG - onsemi PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN24, 4x4, 0.5P CASE 485L ISSUE B_2026-1.15
click to zoom
3D Models
MC100EP91MNG - onsemi - 3D model - Quad Flat No-Lead - QFN24, 4x4, 0.5P CASE 485L ISSUE B_2026-1.15
click to zoom

MC100EP91MNG Details

  • Manufacturer Part Number:

    MC100EP91MNG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN24, 4x4, 0.5P

  • Pin Count:

    24

  • Manufacturer Package Code:

    485L-01

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    5.68

  • Delay-Max:

    0.75 ns

  • Interface IC Type:

    ECL TO PECL TRANSLATOR

  • JESD-30 Code:

    S-XQCC-N24

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    1

  • Number of Functions:

    3

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Latch or Register:

    NONE

  • Output Polarity:

    COMPLEMENTARY

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max:

    3.8 V

  • Supply Voltage-Min:

    2.375 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

MC100EP91MNG Frequently Asked Questions (FAQs)

  • A good PCB layout for the MC100EP91MNG involves keeping the input and output traces short and matched, using a solid ground plane, and minimizing vias and bends. It's also recommended to use a low-impedance power supply and to decouple the power pins with capacitors.
  • The MC100EP91MNG requires a bias voltage of 3.3V or 5V, depending on the application. Ensure that the bias voltage is stable and within the recommended range. Also, make sure to follow the recommended bias current and impedance matching for optimal performance.
  • The MC100EP91MNG is specified to operate up to 3.2 GHz, but the actual operating frequency may vary depending on the application and PCB layout. It's recommended to consult the datasheet and application notes for specific frequency-related information.
  • The MC100EP91MNG has a maximum junction temperature of 150°C. Ensure good thermal conductivity by using a heat sink or thermal pad, and keep the device away from heat sources. Also, follow the recommended thermal design guidelines in the datasheet and application notes.
  • The MC100EP91MNG has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures during assembly and testing. Use ESD-safe materials, grounding straps, and follow the recommended ESD protection guidelines in the datasheet and application notes.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MC100EP91MNG Overview

Use the download button to access the MC100EP91MNG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MC100, or try a keyword search, such as Level Translators
