MC100EPT20DG - onsemi

Description: Operating Range V CC = 3.0V to 3.6V with GND = 0; Q Output will default HIGH with inputs open; 390ps Typical Propagation Delay; Maximum Frequency > 1 Ghz Typical; PNP TTL Inputs for Minimal Loading

Download MC100EPT20DG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

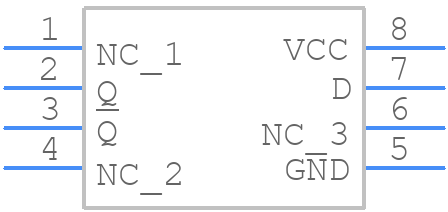

Symbol
MC100EPT20DG - onsemi - PCB symbol
click to zoom
PCB Footprints
MC100EPT20DG - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC-8 NB CAST 751-07
click to zoom
3D Models
MC100EPT20DG - onsemi - 3D model - Small Outline Packages - SOIC-8 NB CAST 751-07
click to zoom

MC100EPT20DG Details

  • Manufacturer Part Number:

    MC100EPT20DG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC-8 Narrow Body

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    751-07

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    5.84

  • Delay-Max:

    0.45 ns

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    TTL/CMOS TO PECL TRANSLATOR

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Latch or Register:

    NONE

  • Output Polarity:

    COMPLEMENTARY

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    33 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    ECL

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

MC100EPT20DG Frequently Asked Questions (FAQs)

  • A good PCB layout for the MC100EPT20DG involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a shielded enclosure and to keep the device away from other noise-sensitive components.
  • To ensure proper biasing, make sure to connect the VCC pin to a stable 3.3V or 5V power supply, and the GND pin to a solid ground plane. Also, ensure that the input signals are within the recommended voltage range (0.5V to VCC-0.5V) and that the output loads are within the recommended range (up to 50pF).
  • The MC100EPT20DG is specified to operate up to 2.5 GHz, but the actual maximum frequency of operation may vary depending on the specific application, PCB layout, and environmental conditions. It's recommended to consult the datasheet and application notes for more information.
  • The MC100EPT20DG has a maximum junction temperature of 150°C. To ensure reliable operation, it's recommended to keep the device temperature below 125°C. This can be achieved by using a heat sink, improving air flow, and reducing power consumption. Consult the datasheet for thermal resistance and power dissipation information.
  • Yes, the MC100EPT20DG is a sensitive device and requires proper ESD protection during handling and assembly. Use an ESD wrist strap, mat, or workstation, and ensure that all equipment and tools are properly grounded. Avoid touching the device pins or handling the device in a way that could generate static electricity.
