Description:Operating Range V CC = 3.0V to 3.6V with GND = 0; Q Output will default HIGH with inputs open; 390ps Typical Propagation Delay; Maximum Frequency > 1 Ghz Typical; PNP TTL Inputs for Minimal Loading
A good PCB layout for the MC100EPT20DTG involves keeping the input and output traces as short as possible, using a solid ground plane, and minimizing the distance between the device and the load. Additionally, it's recommended to use a 50-ohm transmission line and to terminate the output with a 50-ohm resistor to ensure proper signal integrity.
To ensure proper biasing, connect the VCC pin to a 3.3V or 5V power supply, and the VEE pin to ground. The input voltage (VIN) should be within the recommended range of 0.5V to 3.5V. Additionally, ensure that the input signal is properly terminated and that the output is loaded with a 50-ohm resistor to prevent signal reflections.
The MC100EPT20DTG is capable of supporting data rates up to 3.2 Gbps, making it suitable for high-speed applications such as HDMI, DisplayPort, and PCIe.
To prevent ESD damage, handle the device by the body or use an anti-static wrist strap. Ensure that the PCB is designed with ESD protection in mind, and consider adding ESD protection devices such as TVS diodes or ESD arrays to the input and output lines.
The MC100EPT20DTG is specified to operate over a temperature range of -40°C to 85°C, making it suitable for a wide range of applications, including industrial, automotive, and consumer electronics.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MC100EPT20DTG Overview

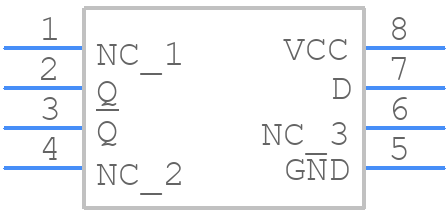

Use the download button to access the MC100EPT20DTG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MC100,
or try a keyword search, such as Level Translators
