MC100EPT21MNR4G - onsemi

Description: Translation - Voltage Levels Diff LVPECL to LVTTL

Download MC100EPT21MNR4G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

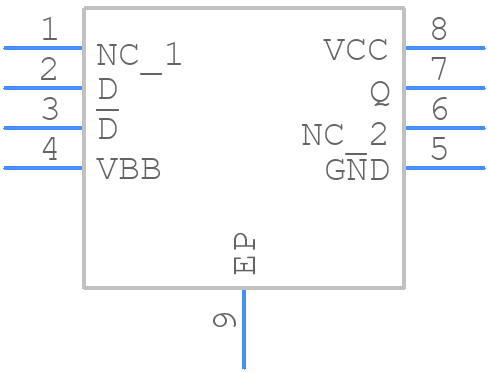

Symbol
MC100EPT21MNR4G - onsemi - PCB symbol
click to zoom
PCB Footprints
MC100EPT21MNR4G - onsemi PCB footprint - Small Outline No-lead - Small Outline No-lead - MC100EPT21MNR4Ga
click to zoom
3D Models
MC100EPT21MNR4G - onsemi - 3D model - Small Outline No-lead - MC100EPT21MNR4Ga
click to zoom

MC100EPT21MNR4G Details

  • Manufacturer Part Number:

    MC100EPT21MNR4G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DFN8 2.0x2.0x0.9mm, 0.5p

  • Pin Count:

    8

  • Manufacturer Package Code:

    506AA

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    4.6

  • Delay-Max:

    2.25 ns

  • Interface IC Type:

    LVPECL TO LVTTL TRANSLATOR

  • JESD-30 Code:

    S-XDSO-N8

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Latch or Register:

    NONE

  • Output Polarity:

    TRUE

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.08,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    ECL

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Gold/Palladium (Ni/Au/Pd)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

MC100EPT21MNR4G Frequently Asked Questions (FAQs)

  • A good PCB layout for the MC100EPT21MNR4G involves keeping the input and output traces as short as possible, using a solid ground plane, and minimizing the distance between the device and the decoupling capacitors. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure proper biasing, make sure to connect the VCC pin to a stable 3.3V power supply, and the GND pin to a solid ground plane. Also, ensure that the input signals are within the recommended voltage range of 0V to VCC, and that the output loads are within the recommended range of 10kΩ to 100kΩ.
  • The maximum operating frequency of the MC100EPT21MNR4G is 100 MHz, but it can be operated at higher frequencies with reduced output amplitude and increased power consumption.
  • To handle ESD protection for the MC100EPT21MNR4G, use ESD protection devices such as TVS diodes or ESD arrays on the input and output lines. Also, ensure that the PCB design includes a solid ground plane and a dedicated power plane to reduce ESD susceptibility.
  • The recommended operating temperature range for the MC100EPT21MNR4G is -40°C to 85°C, but it can be operated at temperatures up to 125°C with reduced performance and reliability.
