MC100EPT22DTG - onsemi

Description: Maximum Frequency > 1.1 GHz; 420 ps Typical Propagation Delay; PNP LVTTL Inputs for Minimal Loading; Q Output will default HIGH with inputs open; The 100 Series contains temperature compensation.; Operating Range: VCC = 3.0 V to 3.6 V with GND = 0 V; Pb-Free Packages are Available

Download MC100EPT22DTG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

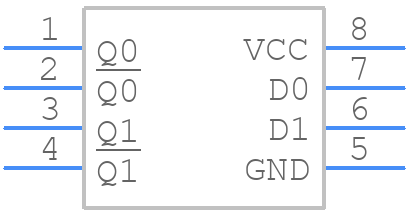

MC100EPT22DTG - onsemi - PCB symbol
click to zoom
PCB Footprints
MC100EPT22DTG - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP 8
click to zoom
3D Models
MC100EPT22DTG - onsemi - 3D model - Small Outline Packages - TSSOP 8
click to zoom

MC100EPT22DTG Details

  • Manufacturer Part Number:

    MC100EPT22DTG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP 8 3.0x3.0x0.95 mm

  • Pin Count:

    8

  • Manufacturer Package Code:

    948R-02

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    5.61

  • Delay-Max:

    0.7 ns

  • Input Characteristics:

    DIFFERENTIAL

  • Interface IC Type:

    TTL/CMOS TO PECL TRANSLATOR

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Bits:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Latch or Register:

    NONE

  • Output Polarity:

    COMPLEMENTARY

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    62 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    ECL

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MC100EPT22DTG Frequently Asked Questions (FAQs)

  • A good PCB layout for the MC100EPT22DTG involves keeping the input and output traces as short as possible, using a solid ground plane, and minimizing the distance between the device and the load. Additionally, it's recommended to use a 50-ohm transmission line and to terminate the output with a 50-ohm resistor to ensure proper signal integrity.
  • To ensure proper biasing, connect the VCC pin to a stable 3.3V or 5V power supply, and the VEE pin to a stable -3.3V or -5V power supply. The input voltage (VIN) should be within the recommended range of 0.5V to 3.5V. Additionally, ensure that the input signal is properly terminated and that the output is properly loaded.
  • The MC100EPT22DTG is capable of supporting data rates up to 3.2 Gbps, making it suitable for high-speed applications such as Gigabit Ethernet, Fibre Channel, and other high-speed data transmission systems.
  • The MC100EPT22DTG has a maximum junction temperature of 150°C. To ensure proper thermal management, it's recommended to use a heat sink or a thermal pad to dissipate heat, especially in high-power or high-temperature applications. Additionally, ensure good airflow around the device and avoid blocking the airflow with other components or obstacles.
  • The MC100EPT22DTG has a human body model (HBM) ESD rating of 2 kV. To ensure proper ESD protection, it's recommended to use ESD protection devices such as TVS diodes or ESD arrays on the input and output lines, and to follow proper handling and storage procedures to prevent ESD damage.
