MC100H680FNG - onsemi

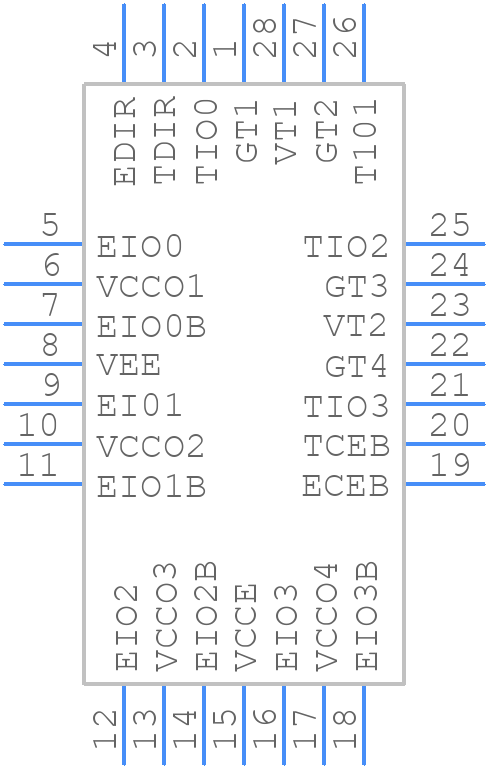

MC100H680FNG Details

• Manufacturer Part Number:

  MC100H680FNG

• Brand Name:

  ON Semiconductor

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

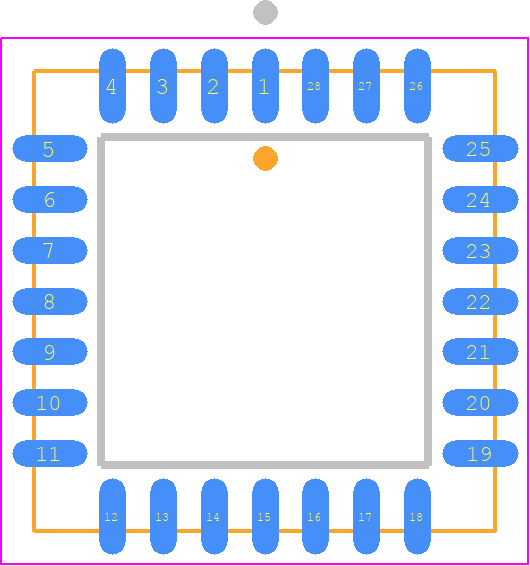

• Part Package Code:

  QLCC

• Package Description:

  PLASTIC, LCC-28

• Pin Count:

  28

• Manufacturer Package Code:

  776-02

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Factory Lead Time:

  4 Weeks

• Manufacturer:

  onsemi

• YTEOL:

  0

• Delay-Max:

  4.9 ns

• Input Characteristics:

  DIFFERENTIAL

• Interface IC Type:

  TTL TO ECL TRANSCEIVER

• JESD-30 Code:

  S-PQCC-J28

• JESD-609 Code:

  e3

• Length:

  11.505 mm

• Moisture Sensitivity Level:

  3

• Number of Bits:

  1

• Number of Functions:

  4

• Number of Terminals:

  28

• Operating Temperature-Max:

  75 °C

• Output Characteristics:

  3-STATE

• Output Latch or Register:

  NONE

• Output Polarity:

  COMPLEMENTARY

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  QCCJ

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  4.57 mm

• Supply Current-Max:

  75 mA

• Supply Voltage-Max:

  5.5 V

• Supply Voltage-Min:

  4.5 V

• Supply Voltage-Nom:

  5 V

• Supply Voltage1-Max:

  -5.46 V

• Supply Voltage1-Min:

  -4.94 V

• Supply Voltage1-Nom:

  -5.2 V

• Surface Mount:

  YES

• Technology:

  ECL

• Temperature Grade:

  COMMERCIAL EXTENDED

• Terminal Finish:

  TIN

• Terminal Form:

  J BEND

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  QUAD

• Width:

  11.505 mm
