MC100LVEL34DTR2G - onsemi

Description: 50 ps Typical Output-to-Output Skew; Synchronous Enable/Disable; Master Reset for Synchronization; 1.5 GHz Toggle Frequency; The 100 Series Contains Temperature Compensation.; PECL Mode Operating Range: VCC = 3.0 V to 3.8 V with VEE = 0V; NECL Mode Operating Range: VCC = 0 V with VEE = -3.0 V to -3.8 V; Open Input Default State; LVDS Input Compatible; Pb-Free Packages are Available

Download MC100LVEL34DTR2G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

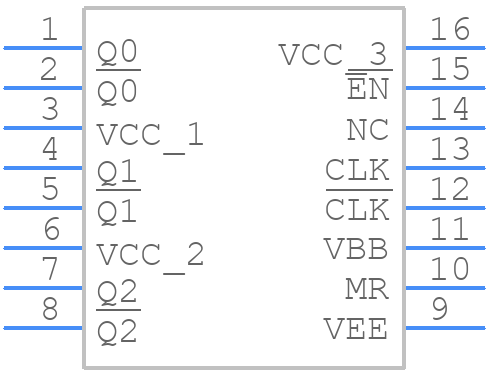

Symbol
MC100LVEL34DTR2G - onsemi - PCB symbol
click to zoom
PCB Footprints
MC100LVEL34DTR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP−16 WB
click to zoom
3D Models
MC100LVEL34DTR2G - onsemi - 3D model - Small Outline Packages - TSSOP−16 WB
click to zoom

MC100LVEL34DTR2G Details

  • Manufacturer Part Number:

    MC100LVEL34DTR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP-16

  • Package Description:

    TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    948F-01

  • Country Of Origin:

    Philippines

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    6

  • Additional Feature:

    NECL MODE: 0V VCC WITH VEE = -3V TO -3.8V

  • Family:

    100LVEL

  • Input Conditioning:

    DIFFERENTIAL

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Logic IC Type:

    LOW SKEW CLOCK DRIVER

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Number of True Outputs:

    3

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    62 mA

  • Prop. Delay@Nom-Sup:

    1 ns

  • Propagation Delay (tpd):

    1 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    3.8 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    ECL

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

  • fmax-Min:

    1500 MHz

MC100LVEL34DTR2G Frequently Asked Questions (FAQs)

  • A good PCB layout for the MC100LVEL34DTR2G involves keeping the input and output traces short and matched, using a solid ground plane, and minimizing vias and bends. It's also recommended to use a low-impedance power supply and to decouple the power pins with capacitors.
  • To ensure signal integrity when using the MC100LVEL34DTR2G at high frequencies, it's essential to use controlled impedance traces, minimize trace lengths, and use termination resistors to match the impedance of the transmission line. Additionally, using a low-jitter clock source and ensuring that the power supply is clean and stable can also help.
  • The MC100LVEL34DTR2G has an operating temperature range of -40°C to 125°C, but it's recommended to operate it within a temperature range of 0°C to 85°C for optimal performance and reliability.
  • To handle ESD protection when handling the MC100LVEL34DTR2G, it's recommended to use an ESD wrist strap or mat, handle the device by the body or pins, and avoid touching the pins or leads. It's also recommended to use ESD-protected packaging and storage materials.
  • The recommended power-up sequence for the MC100LVEL34DTR2G is to apply the power supply voltage (VCC) before applying the input signals. It's also recommended to ensure that the power supply voltage is stable and within the recommended range before applying the input signals.
