Description:LVPECL Operating Range: LVCC = 3.0 V to 3.8 V; ESD Protection: >2 KV HBM, >200 V MM; The 100 Series Contains Temperature Compensation; 500ps Propagation Delays; 5V and 3.3V Supplies Required; PECL Operating Range: VCC = 4.5 V to 5.5 V; Internal Input Pulldown Resistors; Q Output will Default LOW with Inputs Open or < GND+1.3 V; Meets or Exceeds JEDEC Spec EIA/JESD78 IC Latchup Test; Flammability Rating: UL-94 code V-0 @ 1/8", Oxygen Index 28 to 34; Transistor Count = 247 devices; Pb-Free Packages are Availa
A good PCB layout for the MC100LVEL92DWG involves keeping the input and output traces as short as possible, using a solid ground plane, and minimizing the distance between the device and the decoupling capacitors. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure proper decoupling, place a 0.1uF ceramic capacitor between the VCC pin and the GND pin, as close to the device as possible. Additionally, use a 10uF electrolytic capacitor between the VCC pin and the GND pin, located near the power supply. This will help to filter out noise and ensure stable operation.
The MC100LVEL92DWG is specified to operate up to 100 MHz, but it can operate at higher frequencies with reduced output amplitude. However, it's recommended to consult with onsemi's application engineers to determine the maximum operating frequency for a specific application.
The MC100LVEL92DWG has a thermal pad on the bottom of the package, which should be connected to a thermal plane on the PCB. This helps to dissipate heat generated by the device. Additionally, ensure good airflow around the device and consider using a heat sink if the device is expected to operate at high temperatures.
The recommended input signal amplitude for the MC100LVEL92DWG is between 100mV and 1V peak-to-peak. Signals with amplitudes outside this range may not be properly amplified or may cause the device to malfunction.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MC100LVEL92DWG Overview

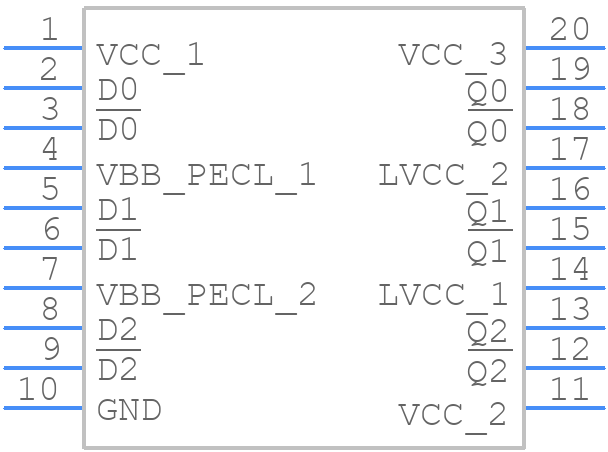

Use the download button to access the MC100LVEL92DWG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MC100,
or try a keyword search, such as Level Translators
