MC100LVELT22DG - onsemi

Description: <100ps Output-to-Output Skew; Flow Through Pinouts; ESD Protection: >4 KV HBM, >200 V MM; The 100 Series Contains Temperature Compensation; 350ps Typical Propagation Delay; LVPECL Operating Range: VCC= 3.15 V to 3.45 V with GND= 0 V; When Unused TTL Input is left Open, Q Output will Default High; Meets or Exceeds JEDEC Spec EIA/JESD78 IC Latchup Test; Moisture Sensitivity Level 1 For Additional Information, see Application Note AND8003/D; Flammability Rating: UL-94 code V-0 @ 1/8", Oxygen Index 28 to 34; Tr

Download MC100LVELT22DG Model

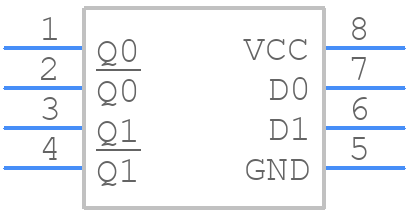

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MC100LVELT22DG - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - 8-Pin SOIC
click to zoom
3D Models
MC100LVELT22DG - onsemi  - 3D model - Small Outline Packages - 8-Pin SOIC
click to zoom

MC100LVELT22DG Details

  • Manufacturer Part Number:

    MC100LVELT22DG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC-8 Narrow Body

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    751-07

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    5.61

  • Delay-Max:

    0.6 ns

  • Input Characteristics:

    DIFFERENTIAL

  • Interface IC Type:

    TTL/CMOS TO PECL TRANSLATOR

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    OPEN-EMITTER

  • Output Latch or Register:

    NONE

  • Output Polarity:

    COMPLEMENTARY

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    29 mA

  • Supply Voltage-Max:

    3.8 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    ECL

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

MC100LVELT22DG Frequently Asked Questions (FAQs)

  • For optimal performance, it's recommended to follow a 4-layer PCB stackup with a solid ground plane, and to use thermal vias to dissipate heat. A minimum of 2oz copper thickness is recommended. Additionally, ensure a minimum of 10mil clearance around the device to prevent thermal coupling.
  • To ensure signal integrity and minimize EMI emissions, use a controlled impedance PCB design, and consider using a common-mode choke or ferrite bead on the output. Also, ensure that the device is properly decoupled with a 0.1uF capacitor and a 10uF capacitor in parallel.
  • For optimal signal quality, it's recommended to use a 50ohm input termination and a 50ohm output termination. Additionally, consider using a series resistor (Rs) of 20-50ohm to match the output impedance to the transmission line.
  • For proper power sequencing, ensure that the VCC supply is powered up before the VEE supply. Also, ensure that the input signals are not applied until the device is fully powered up and stable. A soft-start circuit can be used to control the power-up sequence.
  • The recommended operating conditions for the MC100LVELT22DG are a supply voltage (VCC) of 3.3V ± 10%, an operating temperature range of -40°C to 85°C, and a relative humidity of 60% maximum.
