MC100LVEP111FA - onsemi

Description: TEN DISTRIBUTED-OUTPUT CLOCK DRIVER, 32 Pin, Plastic, QFP

Download MC100LVEP111FA Model

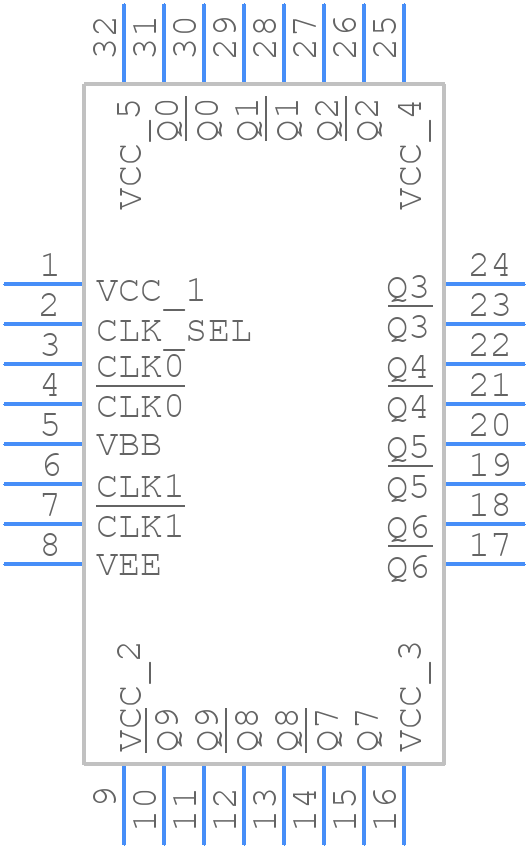

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MC100LVEP111FA - onsemi PCB footprint - Quad Flat Packages - Quad Flat Packages - LQFP−32, 7x7 CASE 561AB−01 ISSUE O
click to zoom
3D Models
MC100LVEP111FA - onsemi  - 3D model - Quad Flat Packages - LQFP−32, 7x7 CASE 561AB−01 ISSUE O
click to zoom

MC100LVEP111FA Details

  • Manufacturer Part Number:

    MC100LVEP111FA

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFP

  • Package Description:

    LQFP-32

  • Pin Count:

    32

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Additional Feature:

    NECL MODE OPERATING RANGE: VCC = 0V WITH VEE = -2.375V TO -3.8V

  • Family:

    100LVE

  • Input Conditioning:

    DIFFERENTIAL MUX

  • JESD-30 Code:

    S-PQFP-G32

  • JESD-609 Code:

    e0

  • Length:

    7 mm

  • Logic IC Type:

    LOW SKEW CLOCK DRIVER

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Number of True Outputs:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    OPEN-EMITTER

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LQFP

  • Package Equivalence Code:

    QFP32,.35SQ,32

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE

  • Peak Reflow Temperature (Cel):

    235

  • Prop. Delay@Nom-Sup:

    0.625 ns

  • Propagation Delay (tpd):

    0.5 ns

  • Qualification Status:

    Not Qualified

  • Same Edge Skew-Max (tskwd):

    0.025 ns

  • Seated Height-Max:

    1.6 mm

  • Supply Voltage-Max (Vsup):

    3.8 V

  • Supply Voltage-Min (Vsup):

    2.375 V

  • Supply Voltage-Nom (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    ECL

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    TIN LEAD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    QUAD

  • Width:

    7 mm

MC100LVEP111FA Frequently Asked Questions (FAQs)

  • A good PCB layout for the MC100LVEP111FA involves keeping the input and output traces short and matched, using a solid ground plane, and placing bypass capacitors close to the device. It's also recommended to use a low-inductance path for the VCC and GND pins.
  • To ensure signal integrity, use controlled impedance traces, minimize trace lengths, and avoid vias and stubs. Also, use a termination scheme such as series termination or parallel termination to match the impedance of the transmission line.
  • The MC100LVEP111FA has an operating temperature range of -40°C to +85°C. However, it's recommended to derate the device's performance at higher temperatures to ensure reliable operation.
  • The MC100LVEP111FA is not a radiation-hardened device. If you need a radiation-hardened device, you should consider using a different part from onsemi's radiation-hardened product line.
  • Handle the MC100LVEP111FA with ESD-sensitive precautions, such as using an ESD wrist strap, mat, or workstation. Avoid touching the device's pins or exposed die, and use ESD-protective packaging when storing or shipping the device.
