MC100LVEP34DG - onsemi

Description: 35 ps Output-to-Output Skew; Synchronous Enable/Disable; Master Reset for Synchronization; The 100 Series Contains Temperature Compensation.; PECL Mode Operating Range: VCC = 2.375 V to 3.8 V with VEE = 0 V; NECL Mode Operating Range: VCC = 0 V with VEE = -2.375 V to -3.8 V; Open Input Default State; LVDS Input Compatible

Download MC100LVEP34DG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

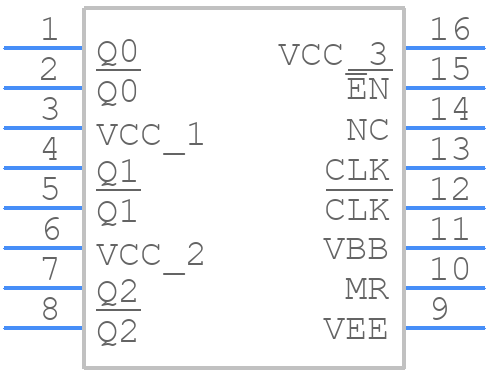

MC100LVEP34DG - onsemi - PCB symbol
click to zoom
PCB Footprints
MC100LVEP34DG - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC−16 9.90x3.90x1.37 1.27P CASE 751B ISSUE M
click to zoom
3D Models
MC100LVEP34DG - onsemi - 3D model - Small Outline Packages - SOIC−16 9.90x3.90x1.37 1.27P CASE 751B ISSUE M
click to zoom

MC100LVEP34DG Details

  • Manufacturer Part Number:

    MC100LVEP34DG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC 16 LEAD

  • Package Description:

    SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    751B-05

  • Country Of Origin:

    Philippines

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    28 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    6.4

  • Additional Feature:

    NECL MODE: VCC = 0V WITH VEE = -2.375V TO -3.8V

  • Family:

    100LVE

  • Input Conditioning:

    DIFFERENTIAL

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Logic IC Type:

    LOW SKEW CLOCK DRIVER

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Number of True Outputs:

    3

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Prop. Delay@Nom-Sup:

    0.85 ns

  • Propagation Delay (tpd):

    0.8 ns

  • Qualification Status:

    Not Qualified

  • Same Edge Skew-Max (tskwd):

    0.035 ns

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    3.8 V

  • Supply Voltage-Min (Vsup):

    2.375 V

  • Supply Voltage-Nom (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    ECL

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

  • fmax-Min:

    2800 MHz

MC100LVEP34DG Frequently Asked Questions (FAQs)

  • A good PCB layout for the MC100LVEP34DG involves keeping the input and output traces short and symmetrical, using a solid ground plane, and minimizing the distance between the device and the bypass capacitors. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure proper biasing, make sure to connect the VCC pin to a stable 3.3V power supply, and the GND pin to a solid ground plane. Also, ensure that the input signals are within the recommended voltage range (0.8V to 2.4V) and that the output is properly terminated with a 50Ω load.
  • The MC100LVEP34DG is specified to operate up to 3.2 GHz, but the actual operating frequency may vary depending on the specific application and PCB layout. It's recommended to consult the datasheet and application notes for more information.
  • The MC100LVEP34DG has a maximum junction temperature of 150°C. To ensure proper thermal management, make sure to provide adequate heat sinking, such as a thermal pad or a heat sink, and ensure good airflow around the device. Also, avoid overheating the device during soldering or rework.
  • The MC100LVEP34DG has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures during assembly and testing. This includes using ESD-safe materials, grounding straps, and ionizers to minimize the risk of ESD damage.
