MC10101P - Motorola

Description: The MC10101 is a quad 2–in

Download MC10101P Model

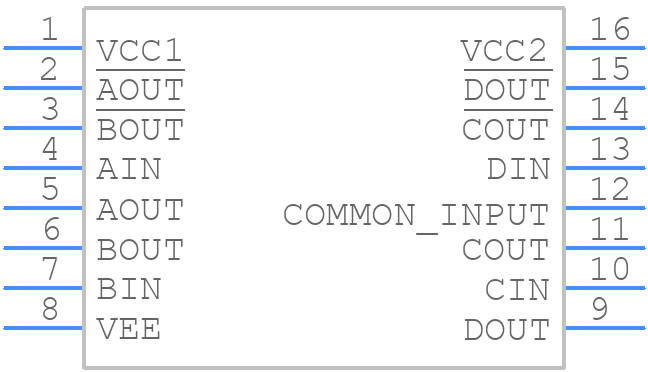

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MC10101P - Motorola PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - P SUFFIX PLASTIC PACKAGE CASE 648–08 ISSUE R
click to zoom
3D Models
MC10101P - Motorola  - 3D model - Dual-In-Line Packages - P SUFFIX PLASTIC PACKAGE CASE 648–08 ISSUE R
click to zoom

MC10101P Details

  • Manufacturer Part Number:

    MC10101P

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    PLASTIC, DIP-16

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Motorola Semiconductor Products

  • Additional Feature:

    STROBED OUTPUTS

  • Family:

    10K

  • JESD-30 Code:

    R-PDIP-T16

  • JESD-609 Code:

    e0

  • Length:

    19.175 mm

  • Logic IC Type:

    INVERTER/BUFFER

  • Number of Functions:

    4

  • Number of Inputs:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -30 °C

  • Output Characteristics:

    OPEN-EMITTER

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP16,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Power Supply Current-Max (ICC):

    29 mA

  • Prop. Delay@Nom-Sup:

    3.3 ns

  • Propagation Delay (tpd):

    3.3 ns

  • Qualification Status:

    Not Qualified

  • Schmitt Trigger:

    NO

  • Seated Height-Max:

    4.44 mm

  • Surface Mount:

    NO

  • Technology:

    ECL

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    TIN LEAD

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm
