MC10E154FNG - onsemi

MC10E154FNG Details

• Manufacturer Part Number:

  MC10E154FNG

• Brand Name:

  ON Semiconductor

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  QLCC

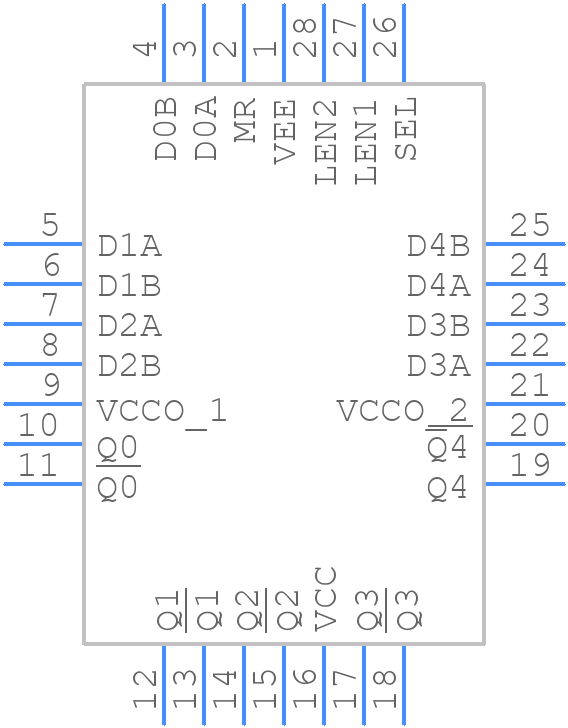

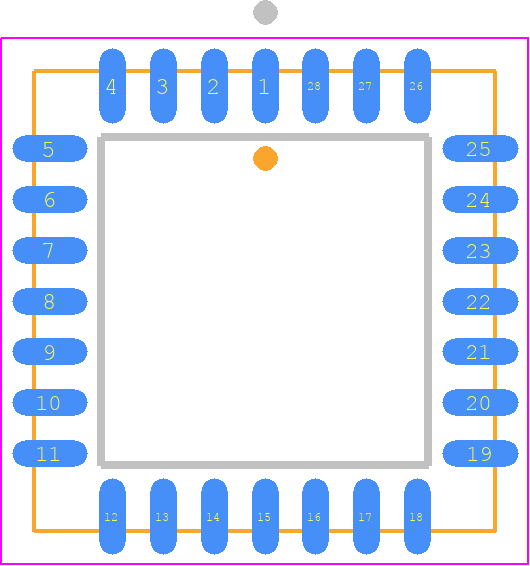

• Package Description:

  LEAD FREE, PLASTIC, LCC-28

• Pin Count:

  28

• Manufacturer Package Code:

  776-02

• HTS Code:

  8542.39.00.60

• Factory Lead Time:

  4 Weeks

• Manufacturer:

  onsemi

• YTEOL:

  0

• Additional Feature:

  NECL MODE: VCC = 0V WITH VEE = -4.2V TO -5.7V

• Family:

  10E

• JESD-30 Code:

  S-PQCC-J28

• JESD-609 Code:

  e3

• Length:

  11.505 mm

• Logic IC Type:

  D LATCH

• Moisture Sensitivity Level:

  3

• Number of Bits:

  5

• Number of Functions:

  1

• Number of Inputs:

  2

• Number of Terminals:

  28

• Operating Temperature-Max:

  85 °C

• Output Characteristics:

  OPEN-EMITTER

• Output Polarity:

  COMPLEMENTARY

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  QCCJ

• Package Equivalence Code:

  LDCC28,.5SQ

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER

• Peak Reflow Temperature (Cel):

  260

• Power Supply Current-Max (ICC):

  91 mA

• Prop. Delay@Nom-Sup:

  0.7 ns

• Propagation Delay (tpd):

  0.8 ns

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  4.57 mm

• Supply Voltage-Max (Vsup):

  5.7 V

• Supply Voltage-Min (Vsup):

  4.2 V

• Supply Voltage-Nom (Vsup):

  5 V

• Surface Mount:

  YES

• Technology:

  ECL

• Temperature Grade:

  OTHER

• Terminal Finish:

  TIN

• Terminal Form:

  J BEND

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  QUAD

• Trigger Type:

  LOW LEVEL

• Width:

  11.505 mm

• fmax-Min:

  700 MHz
