The recommended PCB layout for the MC10ELT21DR2G involves keeping the input and output traces as short as possible, using a solid ground plane, and minimizing the distance between the device and the load. Additionally, it's recommended to use a 50Ω transmission line for the output and to terminate the output with a 50Ω load.
To ensure signal integrity with the MC10ELT21DR2G, it's essential to maintain a controlled impedance environment, use proper termination, and minimize reflections. Additionally, the device should be placed close to the load, and the input and output traces should be routed away from noise sources.
The MC10ELT21DR2G has an operating temperature range of -40°C to 125°C, making it suitable for use in a wide range of applications, including automotive and industrial systems.
The MC10ELT21DR2G has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures during assembly and testing. This includes using an ESD wrist strap, ESD mat, and ESD-safe packaging materials.
The MC10ELT21DR2G requires a stable power supply to operate correctly. It's recommended to use a 0.1μF ceramic capacitor and a 10μF electrolytic capacitor in parallel, placed as close to the device as possible, to decouple the power supply.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MC10ELT21DR2G Overview

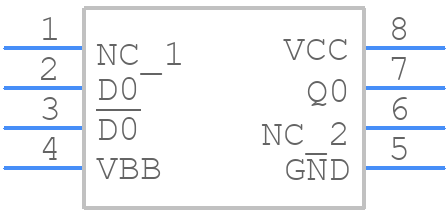

Use the download button to access the MC10ELT21DR2G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MC10E,
or try a keyword search, such as Level Translators
