The recommended operating voltage range for the MC10H125P is 4.75V to 5.25V, although it can operate from 4.5V to 5.5V with reduced performance.
To ensure proper termination of the output signals, use a 50Ω termination resistor to VCC or GND, and keep the output traces as short as possible to minimize reflections and signal degradation.
The MC10H125P can handle clock frequencies up to 1.25 GHz, but the actual maximum frequency may be limited by the system's signal integrity and the quality of the clock signal.
The MC10H125P requires a specific power sequencing order: VCC must be applied before the clock signal, and the clock signal must be stable before applying the input signals. Ensure that the power supply has a low noise and low ripple output to prevent damage to the device.
The typical power consumption of the MC10H125P is around 350 mW at 1.25 GHz clock frequency, but this can vary depending on the operating conditions, input signal levels, and output loading.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MC10H125P Overview

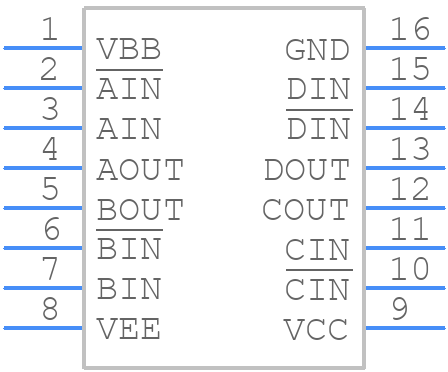

Use the download button to access the MC10H125P schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MC10H,
or try a keyword search, such as Level Translators
