MC10XS4200CFK - NXP

Description: Power Switch ICs - Power Distribution High-Side Switch, 24V, Dual 10mOhms, PQFN23, -40°C ~ 125°C

Download MC10XS4200CFK Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

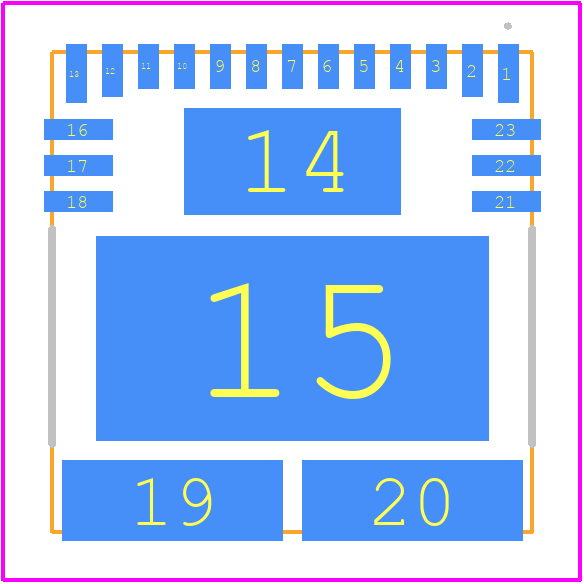

MC10XS4200CFK - NXP PCB footprint - Other - Other - SOT1938-1_2025
click to zoom
3D Models
MC10XS4200CFK - NXP  - 3D model - Other - SOT1938-1_2025
click to zoom

MC10XS4200CFK Details

  • Manufacturer Part Number:

    MC10XS4200CFK

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    PQFN-23

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    39 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    5

  • Built-in Protections:

    TRANSIENT; OVER CURRENT; THERMAL; UNDER VOLTAGE

  • Driver Number of Bits:

    2

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    S-PQCC-N23

  • Length:

    12 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    23

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    OPEN-DRAIN

  • Output Current Flow Direction:

    SINK

  • Output Current-Max:

    8.5 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HQCCN

  • Package Equivalence Code:

    LCC23(UNSPEC)

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2.2 mm

  • Supply Current-Max:

    8.5 mA

  • Supply Voltage-Max:

    36 V

  • Supply Voltage-Min:

    8 V

  • Supply Voltage-Nom:

    24 V

  • Surface Mount:

    YES

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Turn-off Time:

    245 µs

  • Turn-on Time:

    245 µs

  • Width:

    12 mm
