MC12016DR2 - Motorola

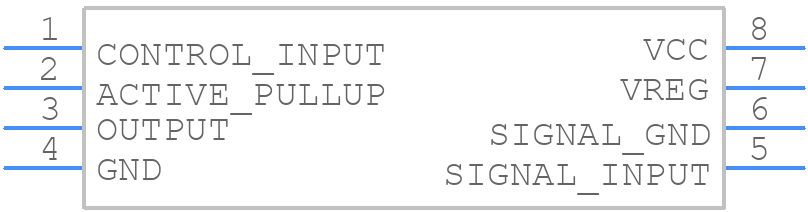

MC12016DR2 Details

• Manufacturer Part Number:

  MC12016DR2

• Part Life Cycle Code:

  Obsolete

• Package Description:

  PLASTIC, SO-8

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Motorola Semiconductor Products

• YTEOL:

  0

• Additional Feature:

  CAN ALSO BE OPERATED WITH UNREGULATED VOLTAGE FROM 5.5 V TO 9.5 V

• Family:

  ECL

• JESD-30 Code:

  R-PDSO-G8

• Length:

  4.9 mm

• Logic IC Type:

  PRESCALER

• Number of Data/Clock Inputs:

  1

• Number of Functions:

  1

• Number of Terminals:

  8

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Characteristics:

  OPEN-COLLECTOR

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SOP

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Power Supply Current-Max (ICC):

  7.8 mA

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  1.75 mm

• Supply Voltage-Max (Vsup):

  5.5 V

• Supply Voltage-Min (Vsup):

  4.5 V

• Supply Voltage-Nom (Vsup):

  5 V

• Surface Mount:

  YES

• Technology:

  ECL

• Temperature Grade:

  INDUSTRIAL

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Width:

  3.9 mm

• fmax-Min:

  225 MHz
