MC14013BDR2G - onsemi

Description: Supply Voltage Range = 3.0 Vdc to 18 Vdc; Static Operation; Capable of Driving Two Low-power TTL Loads or One Low-power Schottky TTL Load Over the Rated Temperature Range; Pin-for-Pin Replacement for CD4013B; Diode Protection on All Inputs; Logic Edge-Clocked Flip-Flop Design Logic state is retained indefinitely with clock level either high or low; information is transferred to the output only on the positive-going edge of the clock pulse; Pb-Free Packages are Available*

Download MC14013BDR2G Model

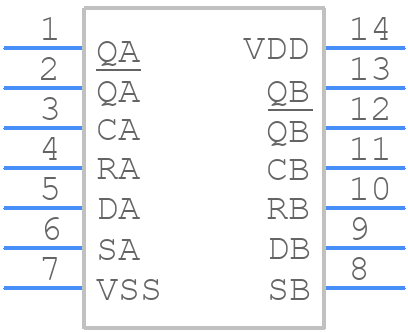

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MC14013BDR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC-14
click to zoom
3D Models
MC14013BDR2G - onsemi  - 3D model - Small Outline Packages - SOIC-14
click to zoom

MC14013BDR2G Details

  • Manufacturer Part Number:

    MC14013BDR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC-14 NB

  • Package Description:

    SOIC-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    751A-03

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    6 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    5

  • Family:

    4000/14000/40000

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Length:

    8.65 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    D FLIP-FLOP

  • Max Frequency@Nom-Sup:

    2000000 Hz

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Polarity:

    COMPLEMENTARY

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Prop. Delay@Nom-Sup:

    350 ns

  • Propagation Delay (tpd):

    350 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Trigger Type:

    POSITIVE EDGE

  • Width:

    3.9 mm

  • fmax-Min:

    7 MHz

MC14013BDR2G Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the MC14013BDR2G is 4.5V to 18V.
  • To ensure proper biasing, connect the VCC pin to a stable voltage source, and decouple it with a 0.1uF capacitor to ground. Also, ensure the input signals are within the recommended voltage range.
  • The maximum frequency of operation for the MC14013BDR2G is 10MHz.
  • To handle thermal considerations, ensure good airflow around the device, and consider using a heat sink if the device is expected to operate at high temperatures or high power levels.
  • To minimize noise and ensure proper operation, keep the input and output traces short and separate, and avoid running digital and analog traces together. Also, use a solid ground plane and decouple the power supply lines.
