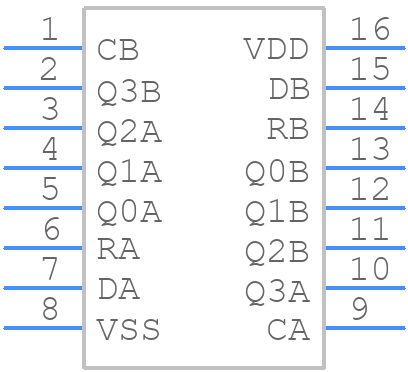

MC14015BCP - Rochester Electronics

MC14015BCP Details

• Manufacturer Part Number:

  MC14015BCP

• Pbfree Code:

  Yes

• Part Life Cycle Code:

  Contact Manufacturer

• Part Package Code:

  DIP

• Package Description:

  PLASTIC, DIP-16

• Pin Count:

  16

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Rochester Electronics LLC

• Count Direction:

  RIGHT

• Family:

  4000/14000/40000

• JESD-30 Code:

  R-PDIP-T16

• JESD-609 Code:

  e0

• Length:

  19.175 mm

• Logic IC Type:

  SERIAL IN PARALLEL OUT

• Number of Bits:

  4

• Number of Functions:

  2

• Number of Terminals:

  16

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -55 °C

• Output Polarity:

  TRUE

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  DIP

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Propagation Delay (tpd):

  750 ns

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  4.44 mm

• Supply Voltage-Max (Vsup):

  18 V

• Supply Voltage-Min (Vsup):

  3 V

• Supply Voltage-Nom (Vsup):

  5 V

• Surface Mount:

  NO

• Technology:

  CMOS

• Temperature Grade:

  MILITARY

• Terminal Finish:

  TIN LEAD

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Trigger Type:

  POSITIVE EDGE

• Width:

  7.62 mm

• fmax-Min:

  3.75 MHz
