MC14024BCP - Motorola

Description: Counter Shift Registers 3-18V 7-Segment

Download MC14024BCP Model

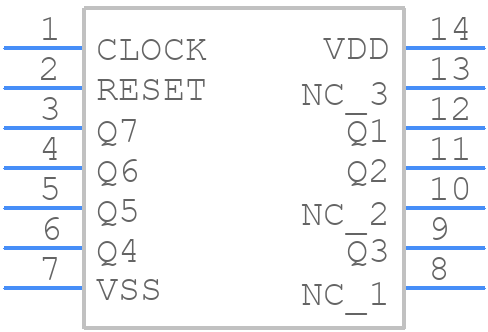

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

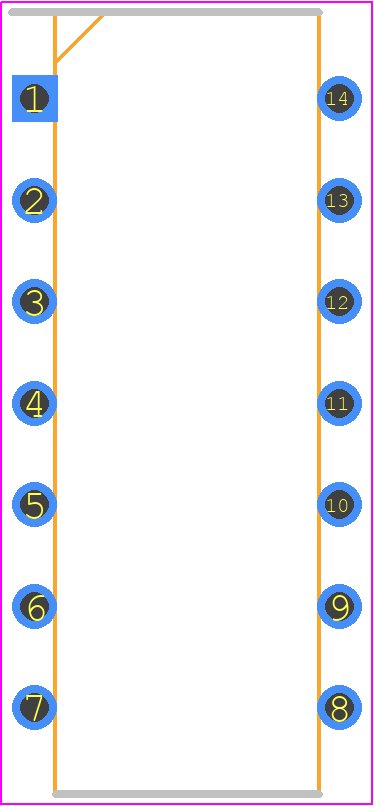

MC14024BCP - Motorola PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - P SUFFIX
click to zoom
3D Models
MC14024BCP - Motorola  - 3D model - Dual-In-Line Packages - P SUFFIX
click to zoom

MC14024BCP Details

  • Manufacturer Part Number:

    MC14024BCP

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    PLASTIC, DIP-14

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Motorola Semiconductor Products

  • Count Direction:

    UP

  • Family:

    4000/14000/40000

  • JESD-30 Code:

    R-PDIP-T14

  • JESD-609 Code:

    e0

  • Length:

    18.86 mm

  • Load Capacitance (CL):

    50 pF

  • Load/Preset Input:

    NO

  • Logic IC Type:

    BINARY COUNTER

  • Max Frequency@Nom-Sup:

    4000000 Hz

  • Max I(ol):

    0.00088 A

  • Mode of Operation:

    ASYNCHRONOUS

  • Number of Bits:

    7

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP14,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Propagation Delay (tpd):

    2000 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    4.69 mm

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    TIN LEAD

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Trigger Type:

    NEGATIVE EDGE

  • Width:

    7.62 mm

  • fmax-Min:

    1 MHz

MC14024BCP Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the MC14024BCP is 4.5V to 18V, although it can operate up to 20V with reduced performance.
  • To ensure linear operation, the MC14024BCP requires a bias voltage of at least 2V between the input and output pins, and the output voltage should be within 2V of the supply voltage.
  • The maximum power dissipation of the MC14024BCP is 500mW, and it is recommended to use a heat sink for high-power applications.
  • Yes, the MC14024BCP can be used as a switch, but it is not recommended due to its relatively high on-resistance and limited current handling capability. A dedicated switch or relay is recommended for switching applications.
  • To protect the MC14024BCP from ESD, it is recommended to use ESD protection devices such as diodes or resistors, and to handle the device with anti-static wrist straps or mats.
