MC14029BDR2G footprint, schematic symbol and 3D model by onsemi

MC14029BDR2G - onsemi

Description: Asynchronous Preset Enable Operation; Diode Protection on All Inputs; Capable of Driving Two Low-power TTL Loads or One Low-power Schottky TTL Load Over the Rated Temperature Range; Logic Edge-Clocked Design - Count Occurs on Positive Going Edge of Clock; Pin for Pin Replacement for CD4029B; Supply Voltage Range = 3.0 Vdc to 18 Vdc; Internally Synchronous for High Speed; Pb-Free Packages are Available*

Download MC14029BDR2G Model

Schematic
symbols

PCB
footprints

3D
models

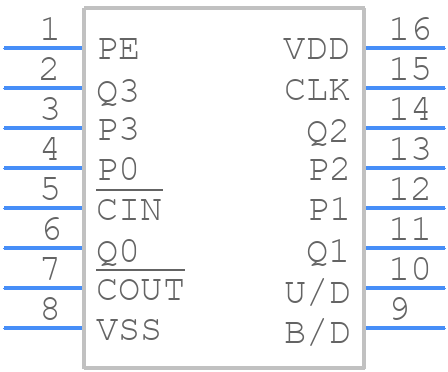

Symbol

click to zoom

PCB Footprints

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for MC14029BDR2G
Part Number MC14029BDR2G
Manufacturer onsemi
Pin Count 16
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - SOIC−16 9.90x3.90x1.37 1.27P CASE 751B ISSUE M
Released Date Aug 7, 2015
Pinout / Pin List Click Here (Member Only)

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

MC14029BDR2G Overview

Use the download button to access the MC14029BDR2G schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like MC140, or try a keyword search, such as Counters
